Air Cooling Energy Storage Cabinet

Commercial buildings | Factories | Industrial parks | Backup power systems

Power: Power: 50KW–100KW
Energy: 100KWh–215KWh
Commercial & Industrial Energy Storage
Long Cycle Life ≥6000 Times
Air Cooling Thermal Management

Chat Now 

Description

Air-cooled energy storage cabinets are a type of new energy storage solution. They are commercial and industrial-grade integrated battery energy storage systems where all components (BMS, PCS, EMS, etc.) are integrated into a compact outdoor cabinet.

This cabinet provides efficient energy storage management for power-demanding scenarios such as factories, commercial buildings, and electric vehicle charging stations.



Shopping Center

Core Features & Advantages

Power Your Business with Safe & Intelligent Energy Storage

Highly integrated – easy to transport and install
Easy to expand capacity: can be paralleled for increased capacity
Modular design supports parallel connection, facilitating system expansion
Intelligent and user-friendly, with real-time status monitoring and fault logging
Impeccable safety: outdoor temperature resistant

Key Benefits for Customers

Reduce Electricity Costs：Store electricity during off-peak hours and use it during peak hours to reduce electricity bills.
Stable Backup Power： Provide emergency backup power during grid outages.
Support EV Charging Infrastructure: Reduce transformer pressure and improve charging station efficiency.
Scalable Solution: Flexible capacity expansion for future energy demand.

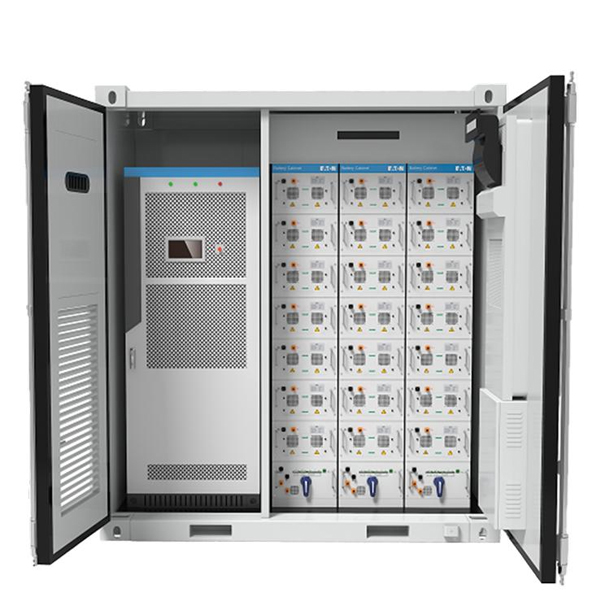

Core Components

Battery Management System (BMS): Multi-level safety protection, real-time monitoring.
Energy Management System (EMS): Smart control, remote monitoring, peak shaving.
Air Cooling System: Ensures optimal temperature, prolongs battery life.
Fire Protection: Built-in emergency stop and fire suppression system.

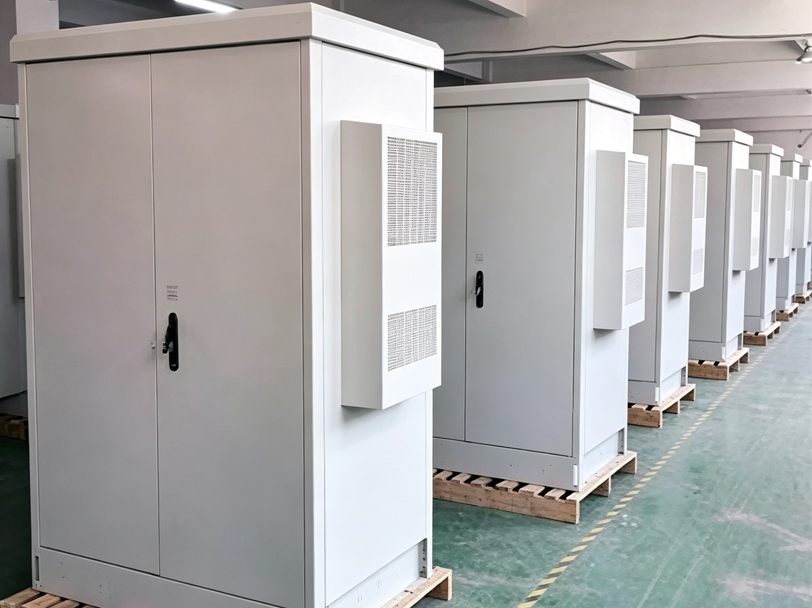

Strength Factory

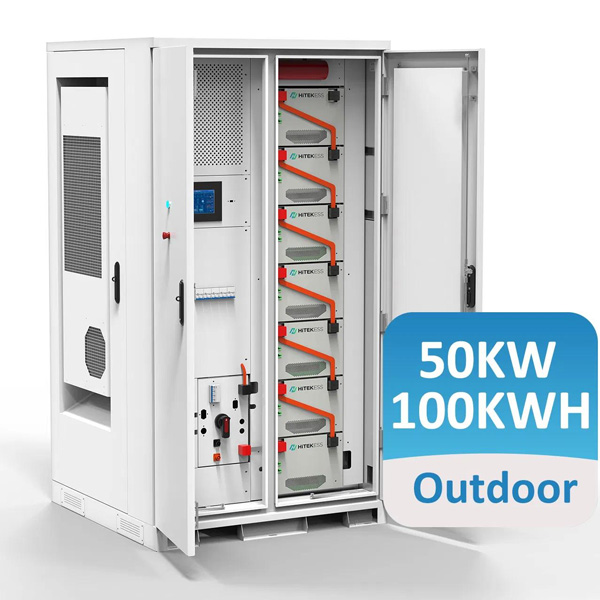

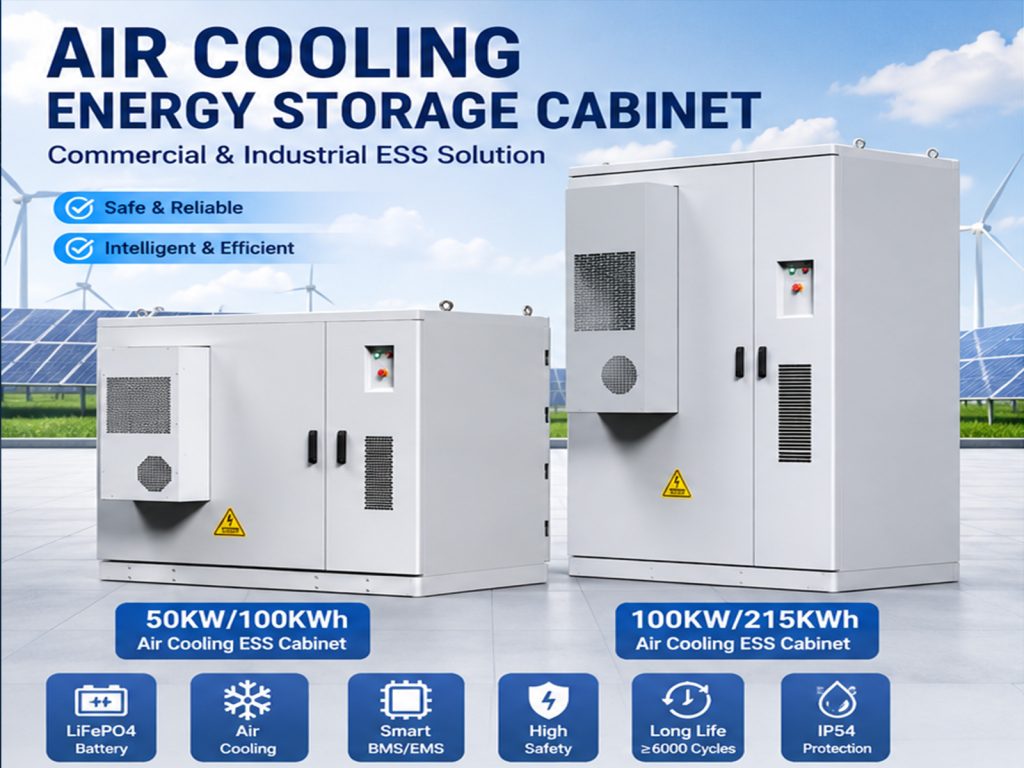

Professional 50KW/100KWh and 100KW/215KWh air cooling energy storage cabinet for commercial and industrial applications. Integrated LiFePO4 ESS solution with intelligent EMS, BMS, fire protection, and outdoor IP54 design.

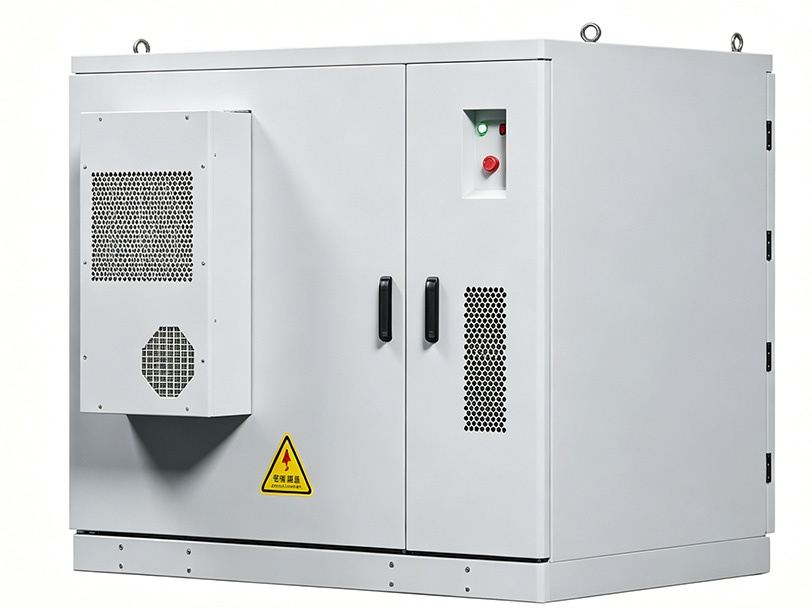

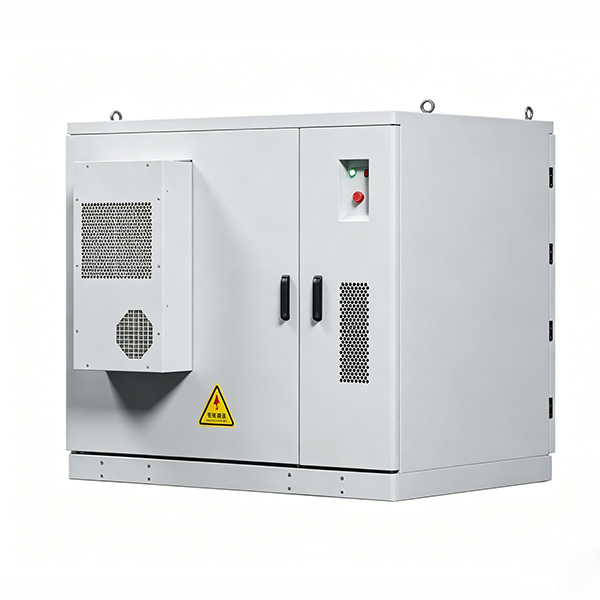

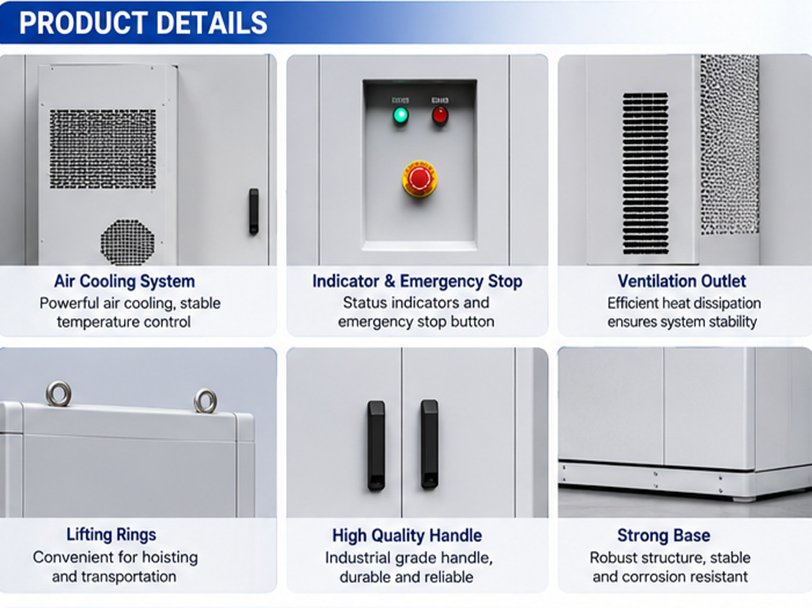

Cabinet Exterior

Material & Finish: Industrial-grade metal, powder-coated for corrosion resistance.
Design: Compact, modular design suitable for outdoor installation.
Doors & Handles: Durable industrial handles; easy access for maintenance.
Lifting Points: Integrated lifting rings for safe hoisting and transportation.

Specification

Air Cooling Energy Storage Cabinet

Energy Storage Cabinet 5

Air Cooling Energy Storage Cabinet 50KW–200KW / 100KWh–400KWh

Parameter	Specification	Parameter	Specification
Battery Cells Type	Lithium Iron Phosphate (LFP)	Corrosion Protection Class	C3
Rated Capacity @ BOL	215 kWh @ 25°C, 0.5P	Operating Humidity Range	0-95% (non-condensing)
Rated Power	100 kW	Cabinet Dimensions (W×H×D)	1600×450×1990 mm
Voltage Range	600-860 V	Protection Level	IP54
Operating Temperature Range	-20 ~ 60°C	Communication Interface	Ethernet
Weight	≤ 2700 kg	Grid Voltage Range	360-440 V
Cooling Method	Industrial Wall-mounted Air Conditioner	Wiring Method	Three-phase four-wire + PE
Fire Safety Configuration	FK-5-1-12 (Fluoroacetone)	Grid Frequency Range	45-55 Hz
