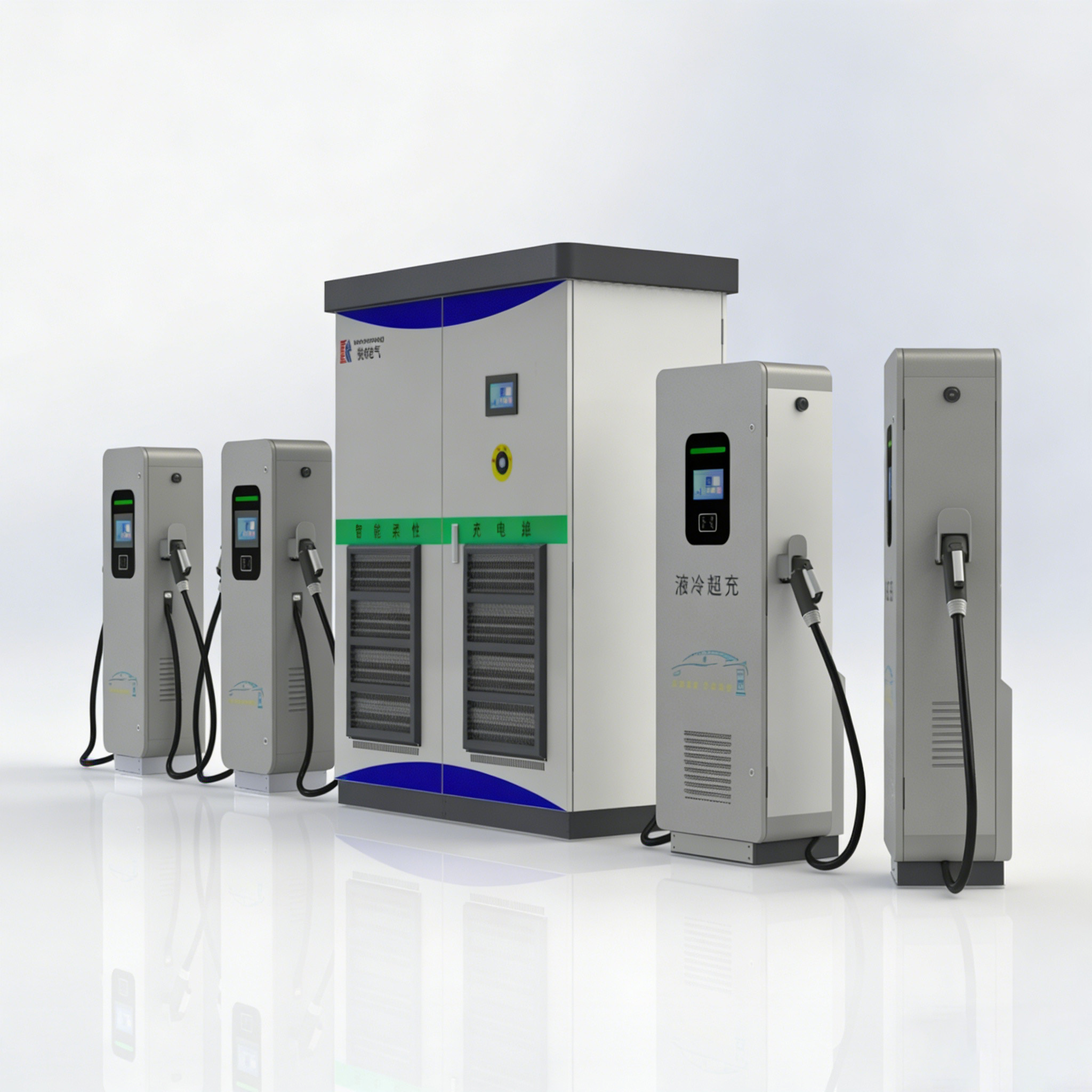

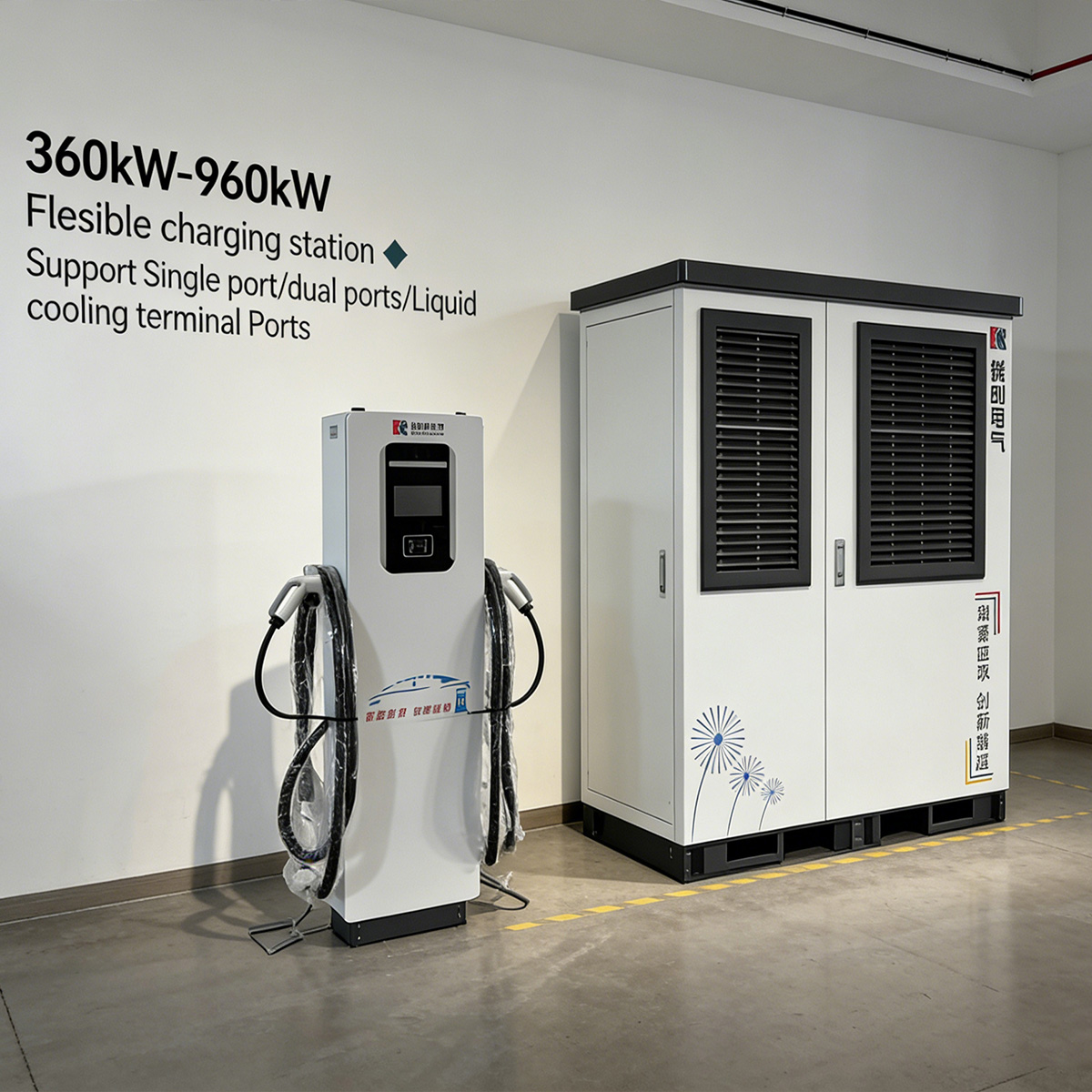

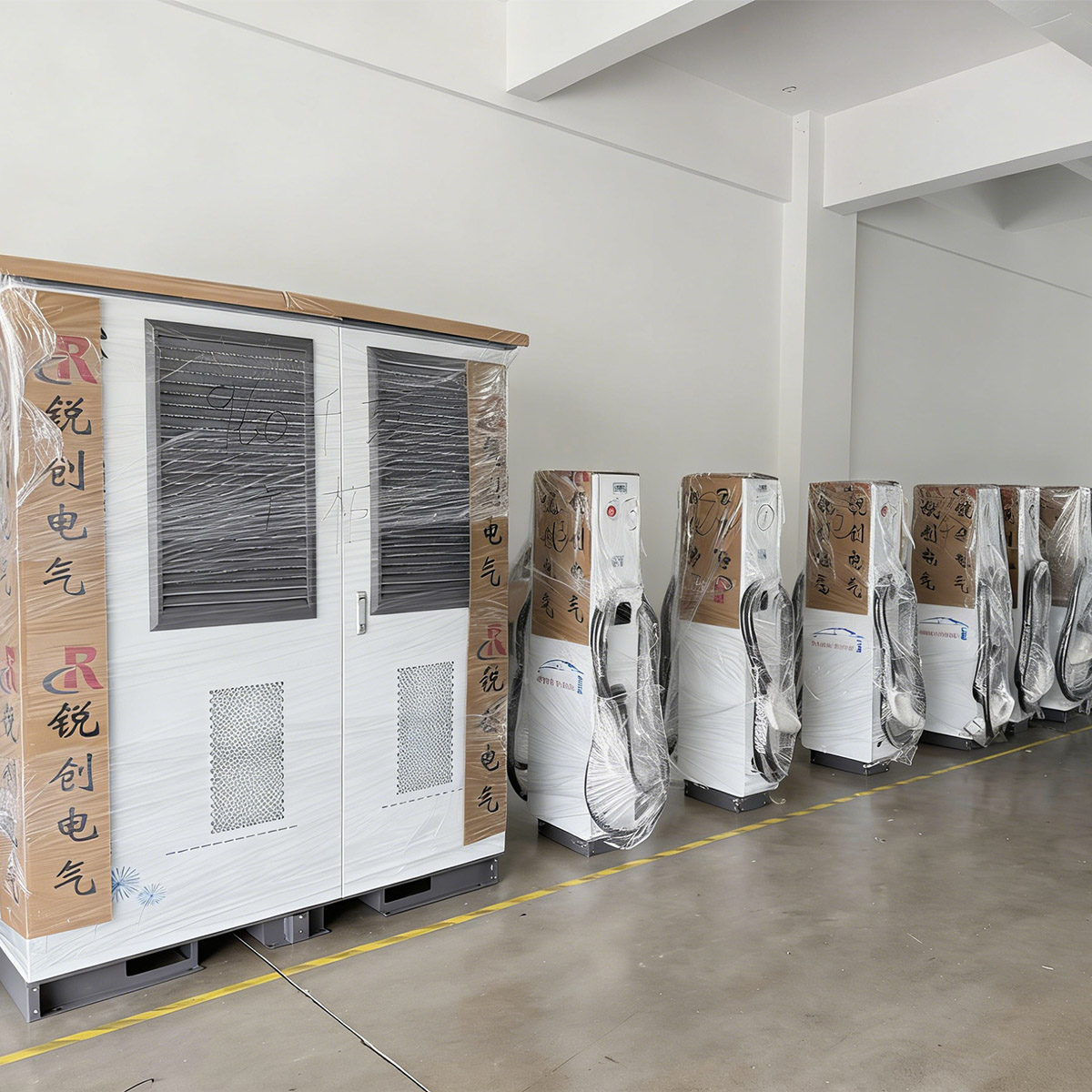

Split Type Modular Charging Stack

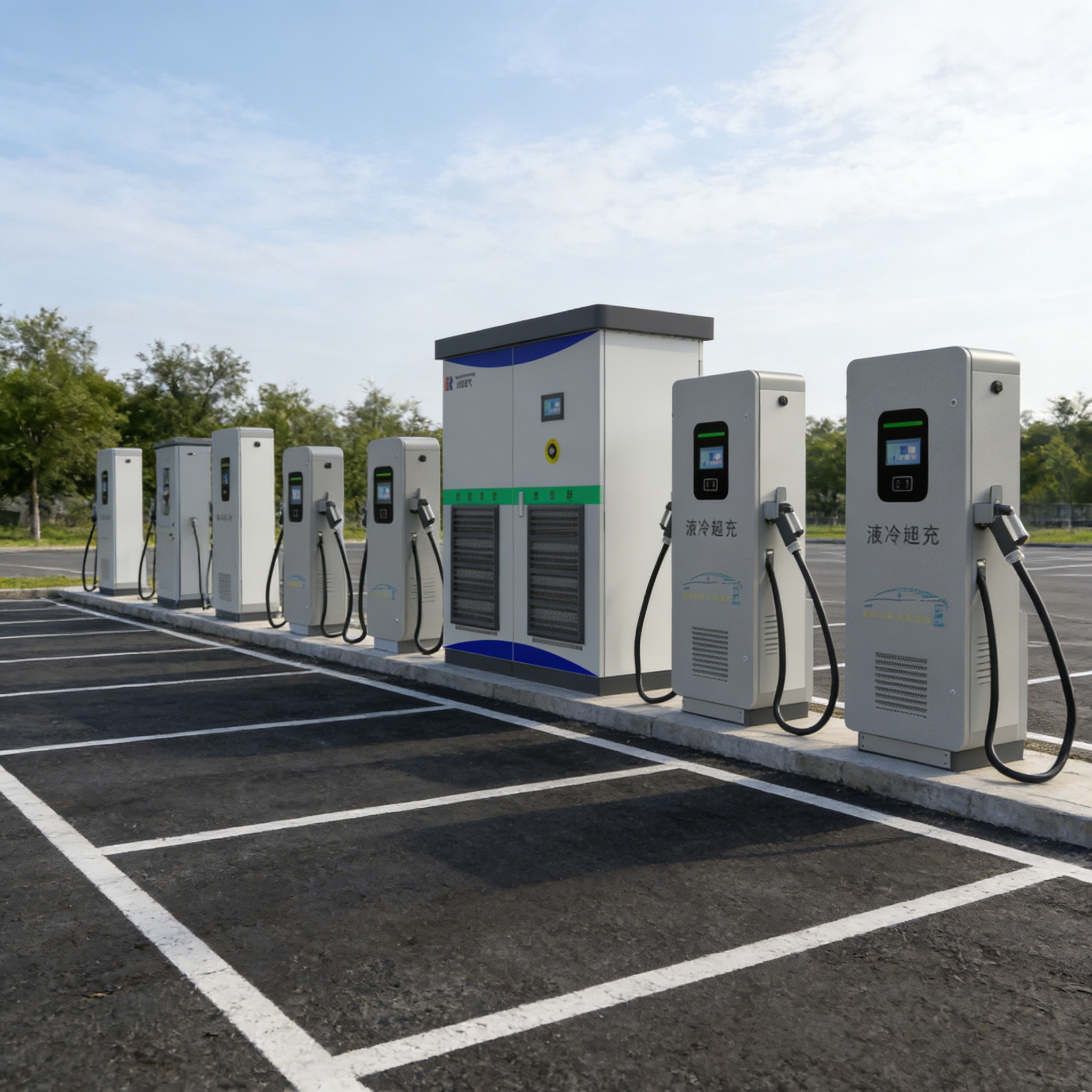

Parking lots | Commercial Building | Workplaces | Fleet |Gas Station

Power: 360kW-960kW optional
Output Voltage: 200-1000V DC
Charge up to 24 vehicles simultaneously
Compatible with all electric vehicle
Charging connectors support CCS1, CCS2, CHAdeMO, GBT Optional

Chat Now 

Description

Risen Split Type DC Fast EV Charger Modular Charging Stack redefines high-power EV charging. With dynamic power allocation, scalable capacity (360kW–960kW), and multi-gun output (1-14 guns optional), it delivers efficient, reliable charging for commercial hubs and fleets. Built for 24/7 operation with IP54 protection, it’s the future of public charging infrastructure.



Shopping Center / Hospitality

Technical Advantages

High Compatibility
Suitable for All Electric Vehicles

Charging connectors support CCS1, CCS2, CHAdeMO, GBT Optional
Charging communication protocol is compatible with the new and old GB/T27930
The charger adopts a wide constant power range charging module, which can achieve full power charging from a car with a battery voltage of 300V to a bus with a battery voltage of 1000V

EV charging payments

Multiple payment methods
for chosen

EV fast chargingconnectors: support CCS/CHAdeMO/GBT
RFID Cards: Swipe the RFID card against the card reader to start the charging
Credit/Debit Cards through POS: The most straightforward to pay with a credit card.
Scan the QR code on the screen

Benefits

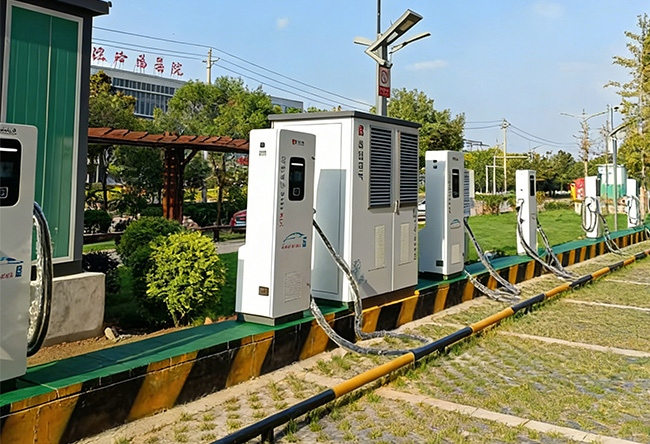

Modular & Split-Type Design
Multi-Outlet & Distributed System

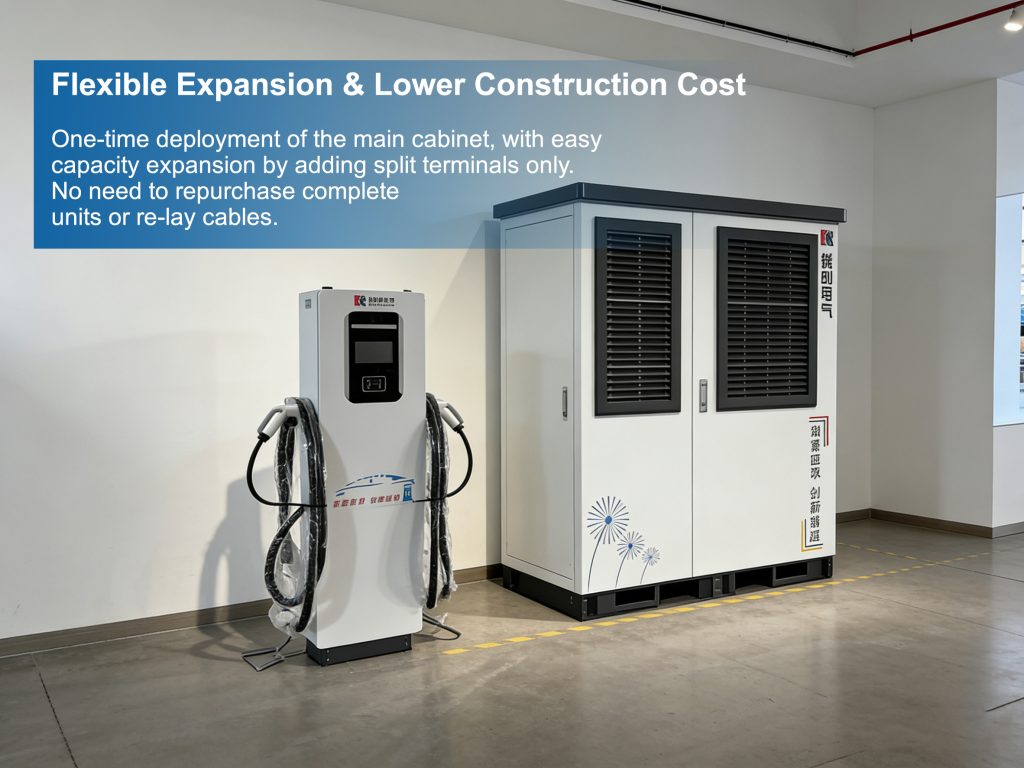

Modular & Scalable Power Distribution
Flexible Site Layout & Space Optimization
Intelligent Load Balancing & High Efficiency
Easy Maintenance & Future-Proof Upgrade
All-Weather & High-Reliability Operation

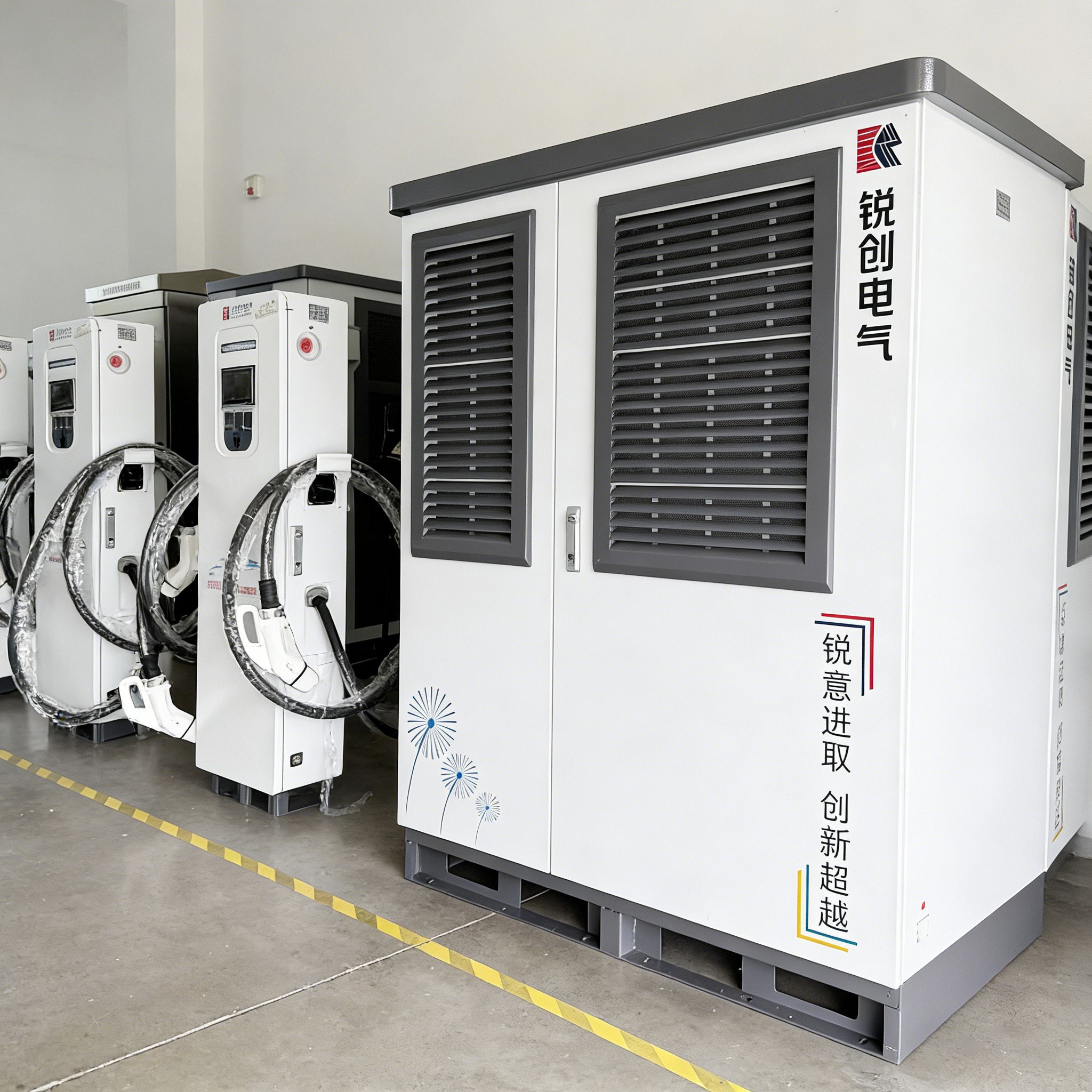

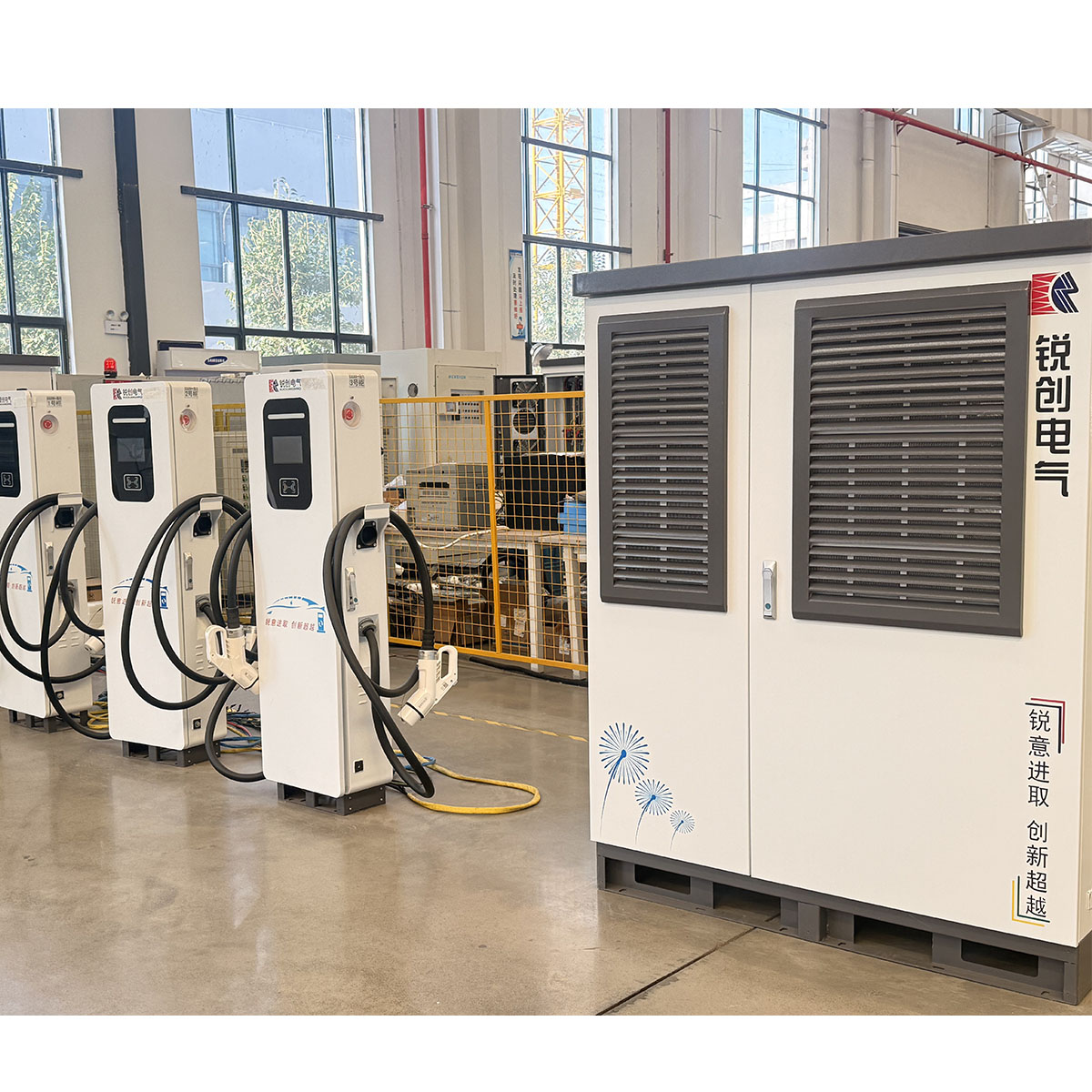

Cabinet Design

Sheet metal: 1.5mm galvanized steel plate.
Honeycomb design of air inlet and outlet, Multiple waterproof: dense mesh, large heat dissipation area.
Protection: IP54, can be installed outdoors.

Charging Station Interface

Easy-to-read displays: Variety of methods to connector the user like Mobile Apps, RFID card.
Comprehensive info: Provide useful information to the user, such as the charging status, time remaining, and cost of the charging session.

Fully Customizable

Customized Service: Logo, colors, language… to meet the unique needs of different businesses and users.
Modular Custom: can be tailored to fit specific requirements, whether it’s for a particular vehicle type, location, or energy output

Specification

Split-Type EV Charging Stack 360kW-960KW

DC Fast EV Charger 360kW/480kW/600kW/640kW/800kW/960KW

Mechanical

Main Cabinet Dimension(W*D*H) 1620x20150x1170mm
Weight 400-600kg
Cable Length Standard 5m or Customized

AC Input

Input Vlotage 380V±15 % /400V±15%/440V±15 %
Input Voltage Type TN – S(Three Phase Five Wire)
Input Current Rating Max 2600A
Working Frequency 45~65Hz
Power Factor ≥0.99
Efficiency≥95 %

DC Output

Output Voltage 200V – 1000V
Charging Connector GBT / CCS1 / CCS2 / CHAdeMO
Simultaneous Output Mode Dynamic Distributor
Output Current DC – CCS 200A; GBT 250A; CHAdeMO 125A;

Interface

Display 7” LCD Touch Screen
User Authentication QR Code, RFID, Mobile APP, POS / Credit Card(Optional)
Network Connection Internet Access Via 4G /Ethernet
Communication Protocols OCPP1.6

Protection

Electric Protection Over-Current, Over-Voltage, Under-Voltage, Ground-Fault, Over-Temperature, Short-Circuit & Surge Protection…etc.
Working Temperature -30℃ ~ +50℃
Protection Level IP54
Warranty 2Years
