Project Overview

This project is a newly completed outdoor roadside charging station installation case in Shangqiu, Henan, China.

Our company finished the whole process including civil construction, equipment installation, power connection, system commissioning and acceptance delivery.

The core equipment of this project is our self-produced 240kW integrated 1-unit 4-gun DC fast charging pile, which is officially put into commercial operation.

Product Core Technical Specifications

• Rated total output power: 240kW DC
• Structure: Integrated 1 cabinet with 4 charging guns
• Charging mode: Simultaneous charging for 4 electric vehicles
• Charging type: Professional DC fast charging (AC slow charging excluded)
• Installation environment: Outdoor open-air roadside station
• Protection level: Industrial waterproof & dustproof outdoor design

Project Core Advantages

Intelligent Multi-Gun Power Distribution

This charging pile adopts advanced modular power intelligent distribution system.

It can supply DC fast charging for 4 EVs at the same time.

The system will automatically allocate output power according to the battery state of each connected vehicle.

It greatly reduces vehicle waiting time and improves charging station operation efficiency.

True High-Speed DC Fast Charging Performance

Different from low-power AC slow chargers, this unit outputs high-voltage DC power directly into vehicle power batteries.

It realizes efficient energy replenishment for electric passenger cars, taxis, online car-hailing vehicles and light commercial EVs.

Ultra High Cost Performance

Compared with 4 separate single-gun DC charging piles, this integrated 4-gun design saves a lot of cost:

• Less land occupation area
• Lower civil construction cost
• Lower power distribution and construction investmentIt is the most cost-effective DC charging solution for public charging stations.

Stable Outdoor Operation Reliability

The whole machine adopts industrial-grade anti-corrosion, waterproof and dustproof shell.

It adapts perfectly to outdoor roadside open-air installation environment.

It supports cloud remote monitoring, fault self-diagnosis and unattended 24/7 operation.

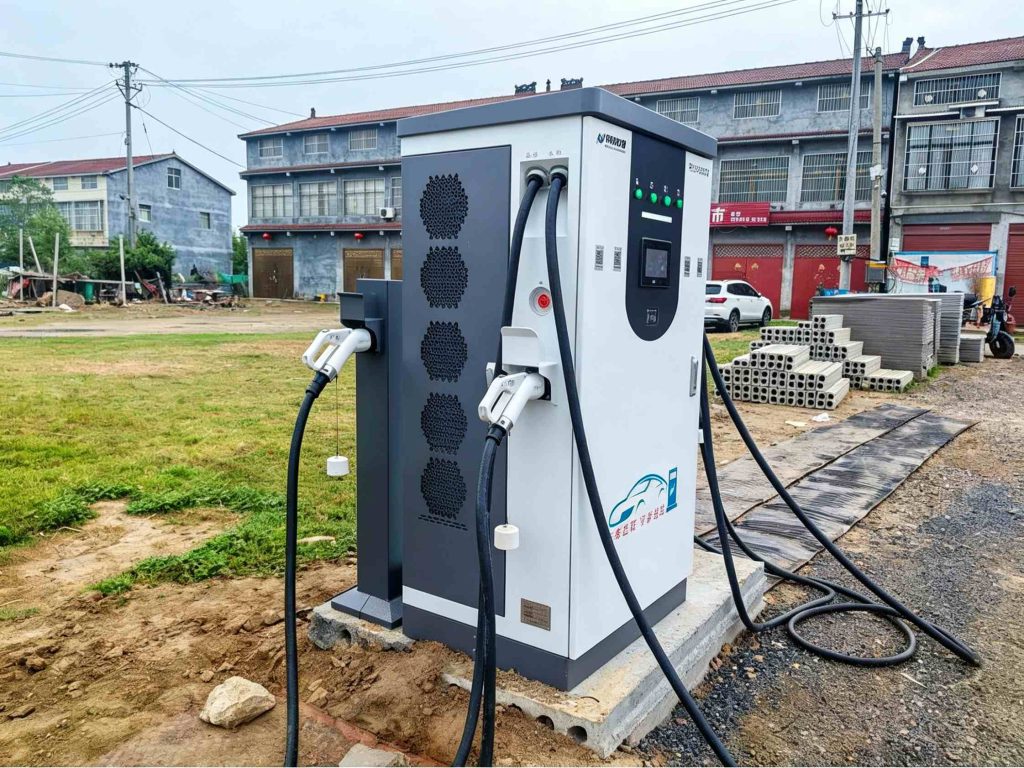

On-Site Installation Details

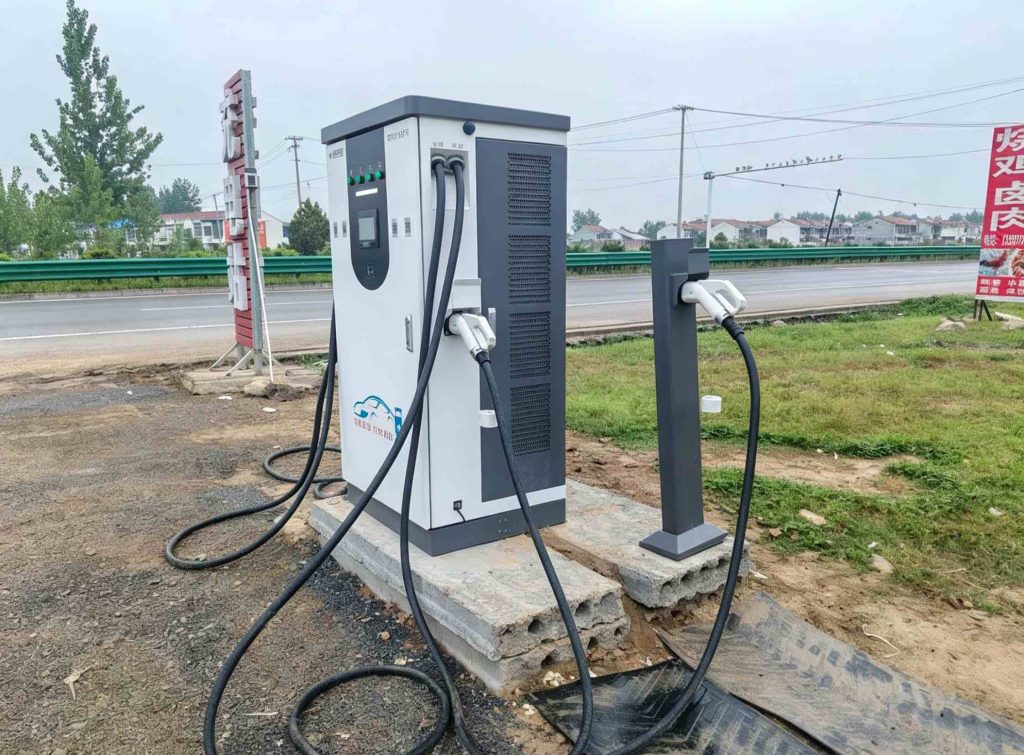

This charging station is installed at a roadside public service area along the national highway.

The whole installation construction complies with national electrical safety standards.

After strict power debugging and safety inspection, the equipment has passed acceptance and been officially put into use.

It provides convenient fast charging services for passing NEVs and surrounding local electric vehicle owners.

Application Scenarios & Our Services

This 240kW 4-gun DC fast charging pile is widely suitable for:

• Highway roadside service stations & rest areas
• Urban suburban public parking lots
• EV fleet operation bases (taxis, online cars, logistics EVs)
• Commercial public charging station projects

We provide full one-stop services for global customers: customized design, factory supply, on-site installation, commissioning training and lifetime after-sales maintenance.

Welcome worldwide partners to consult our EV charging station construction solutions.
