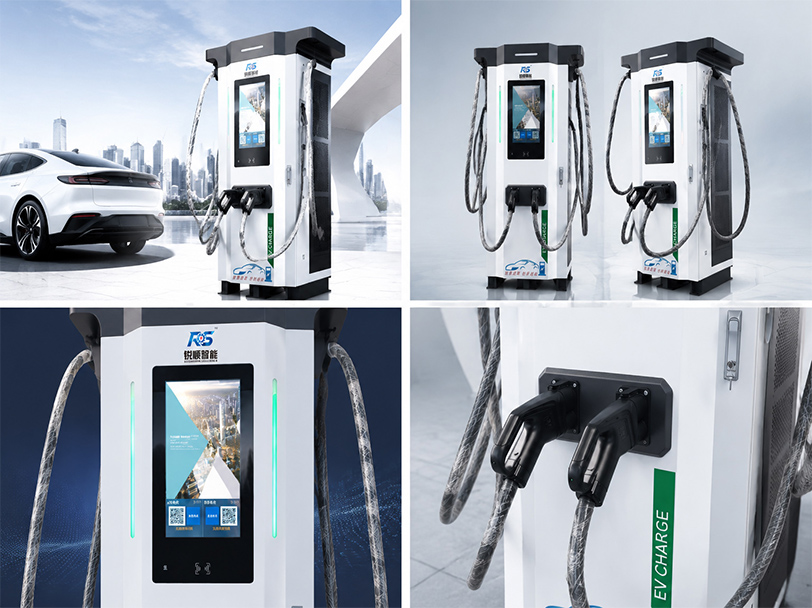

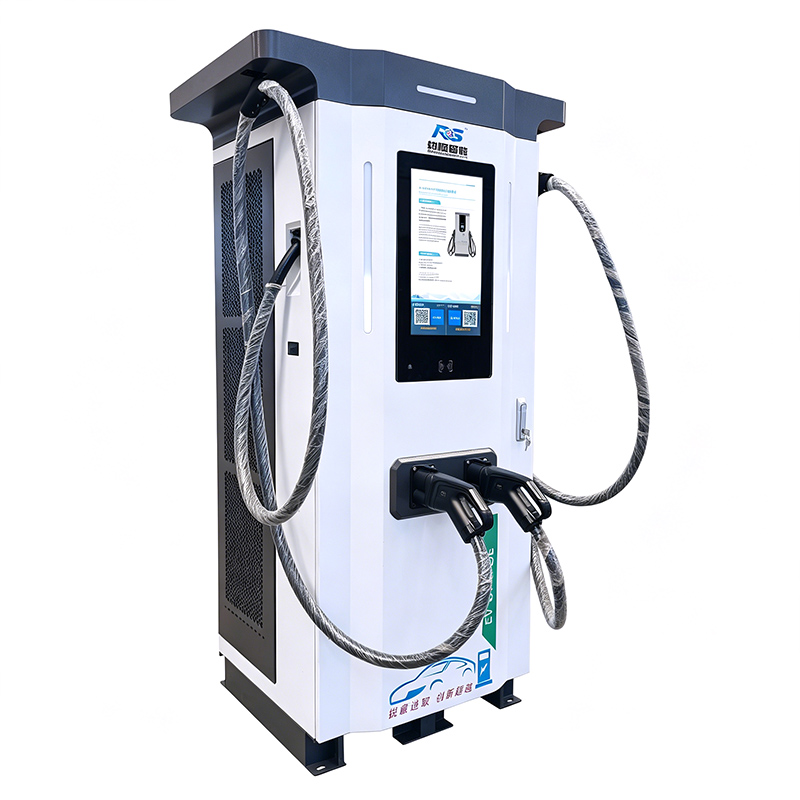

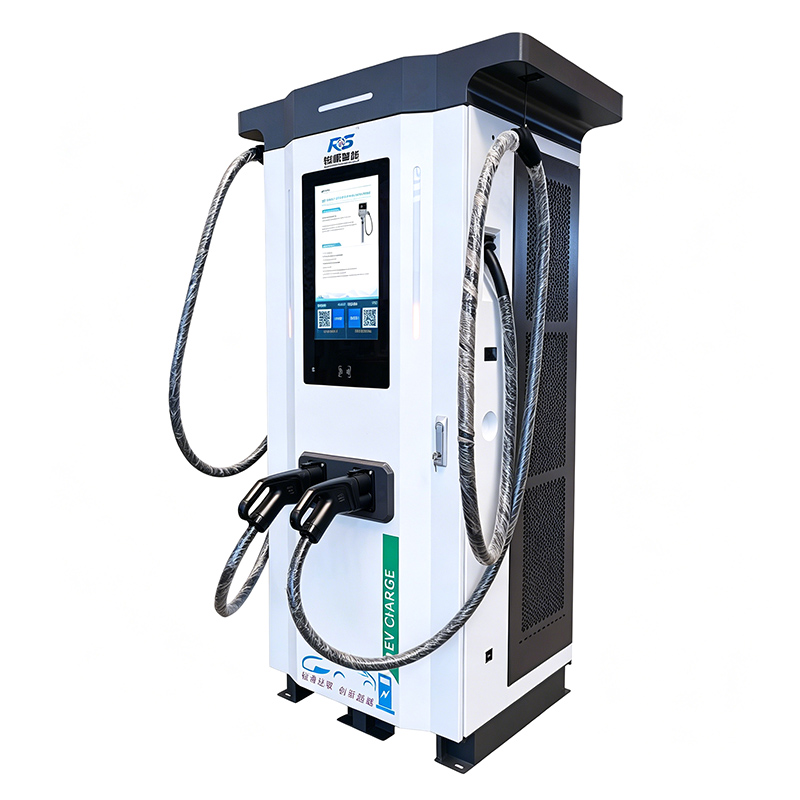

DC Fast Charging Station with Smart Advertising Display

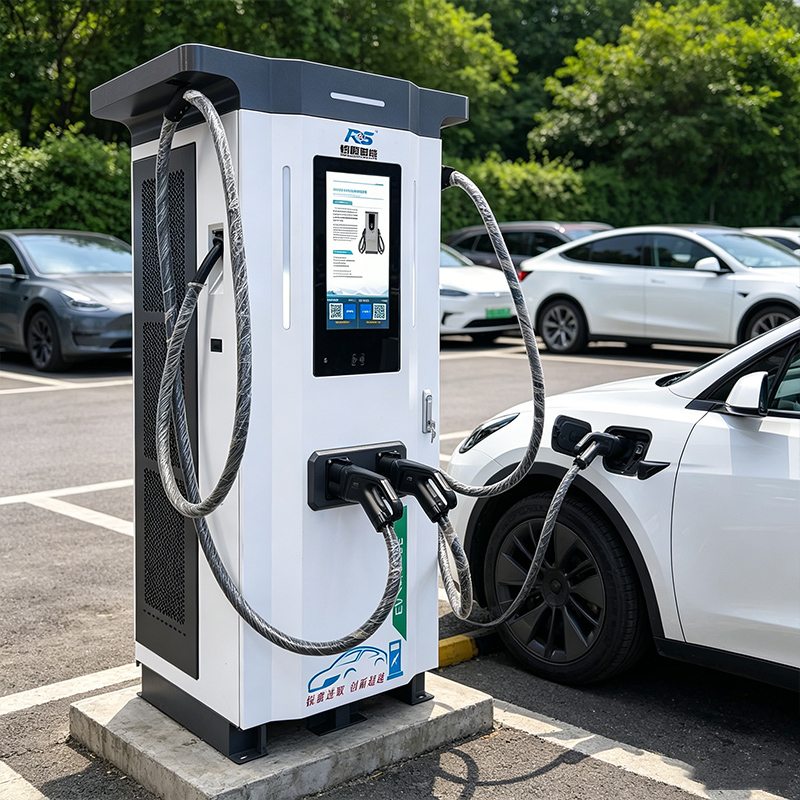

Parking lots | Commercial Building | Workplaces | Fleet |Gas Station

Output Voltage Range: 200–1000V DC
Max Current: 250A
Protection Level: IP54
Operating Temperature: -30°C ~ +50°C
Display System: Smart Advertising Screen
Cooling System: Intelligent Air Cooling

Chat Now 

Description

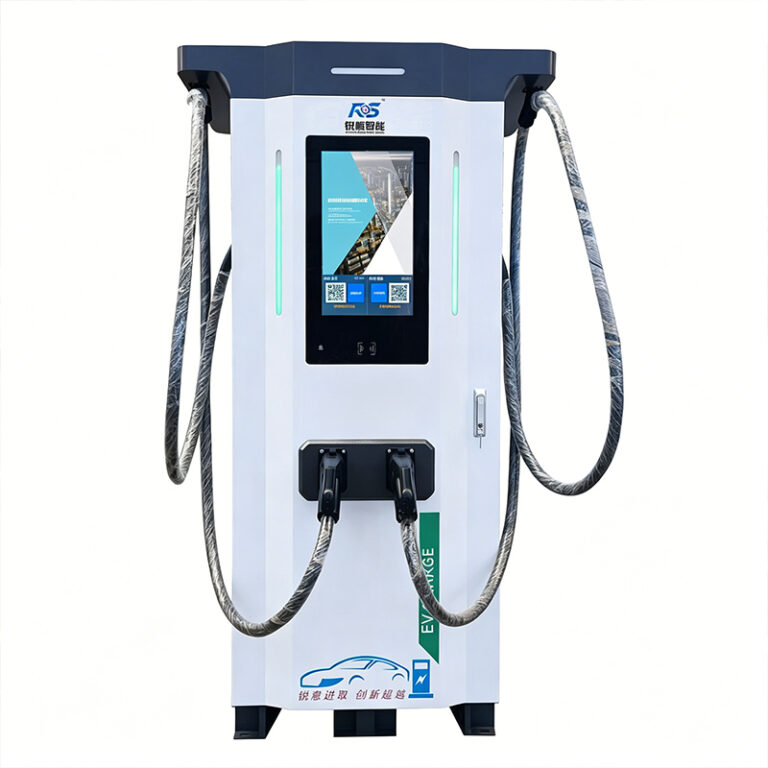

Risen DC Fast Charging Station is a next-generation EV charging solution integrating high-power fast charging, intelligent control system, and commercial advertising display into one robust unit. this charger delivers stable high-efficiency power output up to 240kW, while providing additional revenue through its built-in smart screen advertising system.



Bus Station

Technical Advantages

Structural & Functional Highlights

Integrated EV charging + advertising screen system
Heavy-duty metal enclosure for outdoor environments
Dual charging connectors for simultaneous use
Smart LED status indicators for real-time feedback
Modular internal design for easy maintenance
Anti-corrosion & weather-resistant housing

Ultra-Fast & High-Efficiency Charging Power

Intelligent Control & Smart Management System
10.1” HD touchscreen interface
Real-time charging status monitoring
Remote management & system diagnostics
Smart power distribution technology
User-friendly operation interface

Benefits

Safe, Stable & Industrial-Grade Reliability
Multiple protection system (over-voltage / over-current / short-circuit)
IP54 protection level for outdoor use
Advanced cooling system for stable performance
Industrial-grade components for long lifespan
24/7 continuous operation capability

Cabinet Design

Sheet metal: 1.5mm galvanized steel plate.
Honeycomb design of air inlet and outlet, Multiple waterproof: dense mesh, large heat dissipation area.
Protection: IP54, can be installed outdoors.

Highlights Advantages

Advertising Screen: Extra large scrolling screen to promote and market your business.
Automatic cable retraction device: Improve user convenience and reduce cable wear.

Fully Customizable

Customized Service: Logo, colors, language… to meet the unique needs of different businesses and users.
Modular Custom: can be tailored to fit specific requirements, whether it’s for a particular vehicle type, location, or energy output

Specification

DC Fast EV Charger 160-240KW

DC Fast Charger 120kW/160kW/180kW/240kW

Mechanical

Dimension(W*D*H) 800x750x1850mm
Weight 300-380kg
Cable Length Standard 5m or Customized

AC Input

Input Vlotage 380V±15 % /400V±15%/440V±15 %
Input Voltage Type TN – S(Three Phase Five Wire)
Input Current Rating Max 250A
Working Frequency 45~65Hz
Power Factor ≥0.99
Efficiency≥96 %

DC Output

Output Voltage 200V – 750V / 50V – 1000V
Charging Connector Dual GBT / CCS, or CCS / GBT + CHAdeMO
Simultaneous Output Mode Dynamic Distributor
Output Current DC – CCS 200A; GBT 250A; CHAdeMO 125A;

Interface

Display 7” LCD Touch Screen
User Authentication QR Code, RFID, Mobile APP, POS / Credit Card(Optional)
Network Connection Internet Access Via 4G / Ethernet
Communication Protocols OCPP1.6

Protection

Electric Protection Over-Current, Over-Voltage, Under-Voltage, Ground-Fault, Over-Temperature, Short-Circuit & Surge Protection…etc.
Working Temperature -30℃ ~ +50℃
Protection Level IP54
Warranty 2Years
