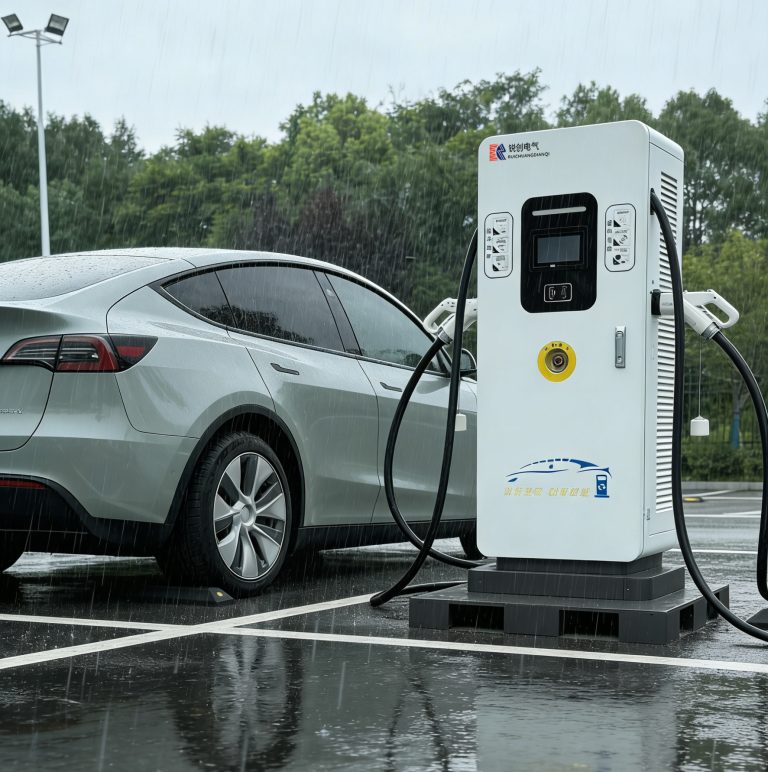

Fast EV Charger

Parking lots | Commercial Building | Workplaces | Fleet |Gas Station

  • Power: 60kW/80kW optional
  • Charge 80% of an electric vehicle’s battery in just 30-50 minutes
  • Charge up to 2 vehicles simultaneously
  • 7” LCD screen with user-friendly interface
  • Supports all types of electric vehicles

    Description

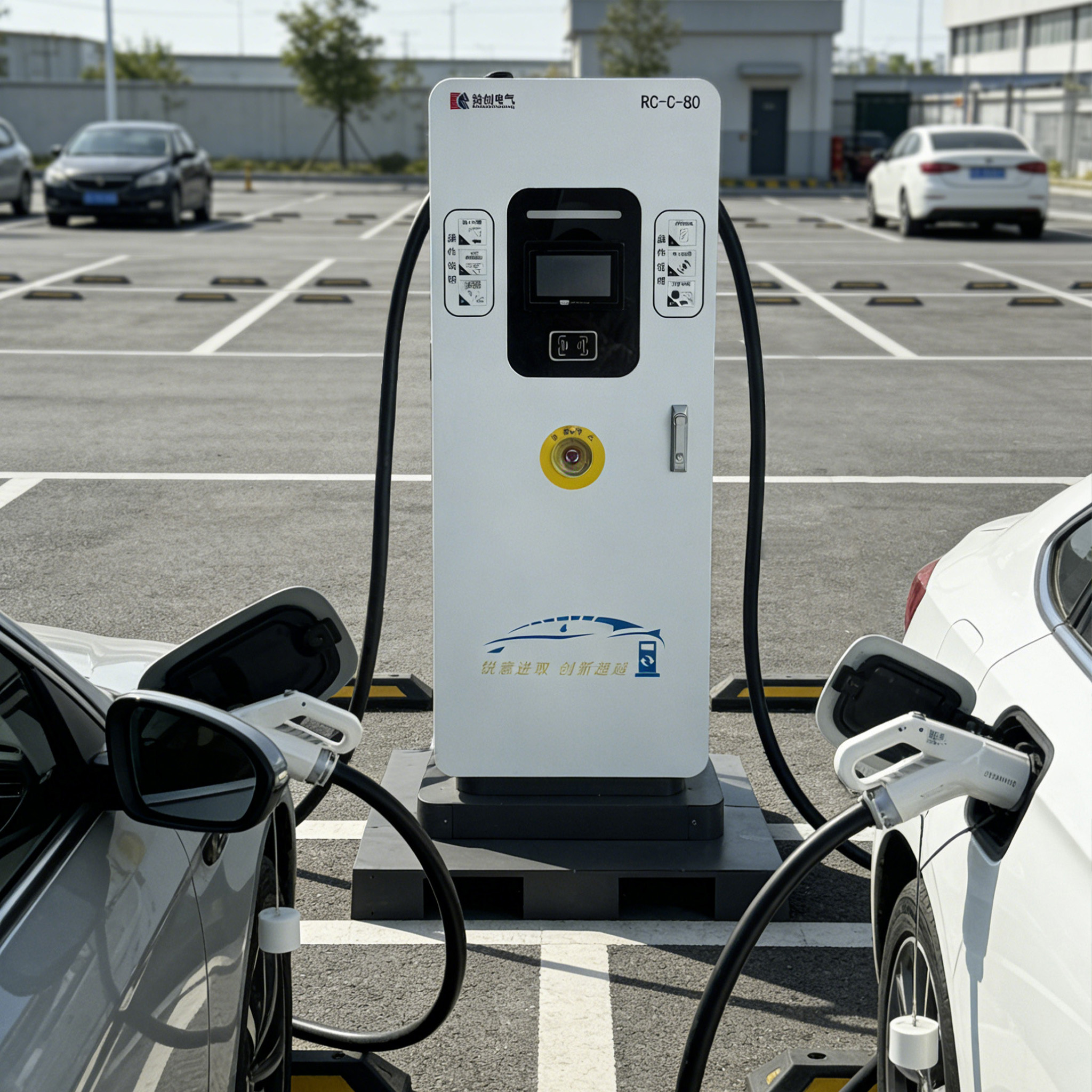

    The RC-C-80 is a high-performance dual-port DC fast ev charger, designed for commercial and public charging stations. With a power range of 60kW to 80kW, this charger provides rapid and reliable charging for a wide range of electric vehicles (EVs). Its robust design, user-friendly interface, and advanced safety features make it an ideal choice for fleet operators, retail locations, and high-traffic EV charging hubs.

    Technical Advantages

    High Compatibility
    Suitable for All Electric Vehicles

    • Dual-Port Charging: Supports two vehicles simultaneously, reducing wait times and improving throughput.
    • High Power Output: Delivers 60kW–80kW, enabling fast charging and minimizing downtime for EV drivers.
    • Intuitive User Interface: Equipped with a touchscreen display and RFID card reader for seamless operation.
    • Universal Compatibility: Supports multiple EV standards, making it suitable for diverse vehicle types.

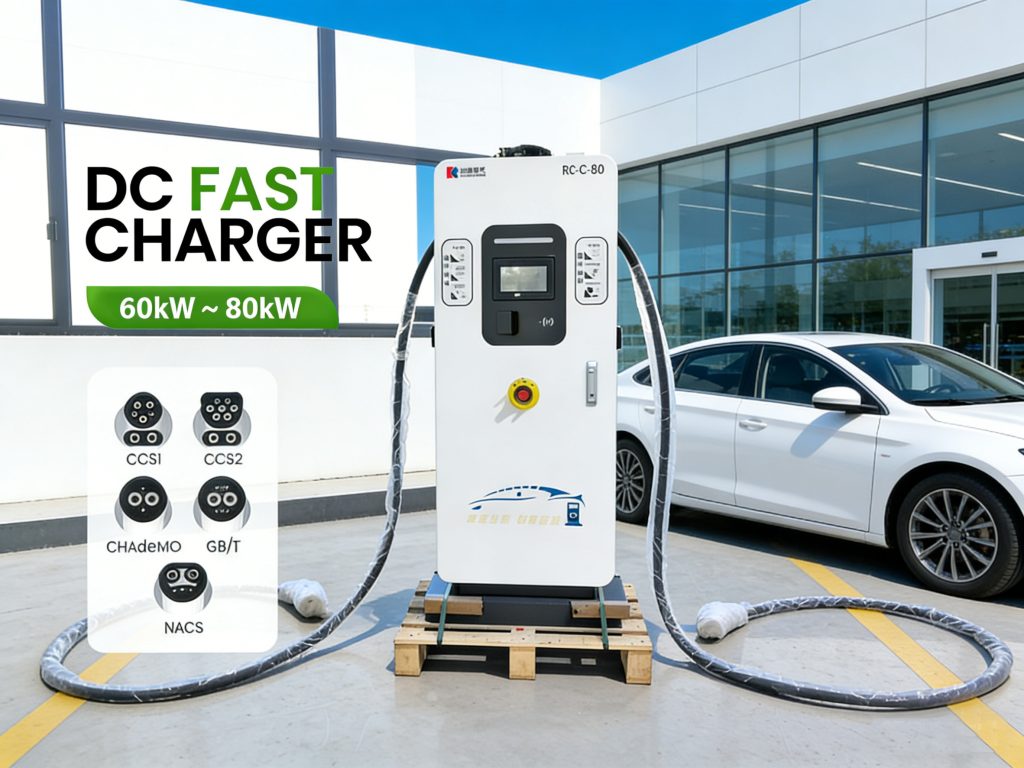

    80kW FAST EV Charger

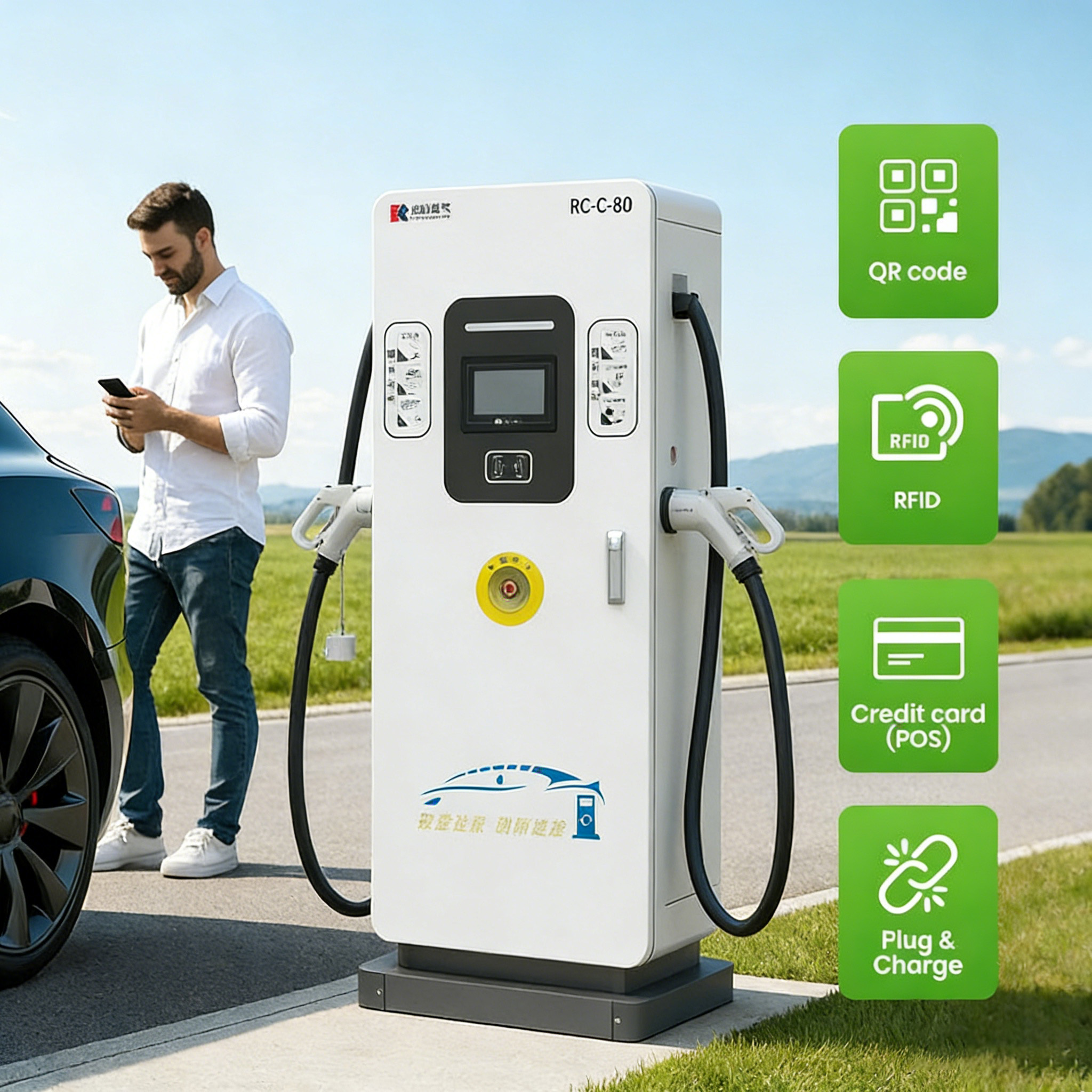

    EV charging payments

    Multiple payment methods
    for chosen

    • Robust and Durable: Sturdy cabinet design ensures long-term reliability even in high-traffic commercial environments.
    • Smart Protection: Includes overvoltage, overcurrent, short circuit, and temperature protection for safe operation.
    • Easy Installation & Maintenance: Modular design simplifies installation and reduces maintenance costs.

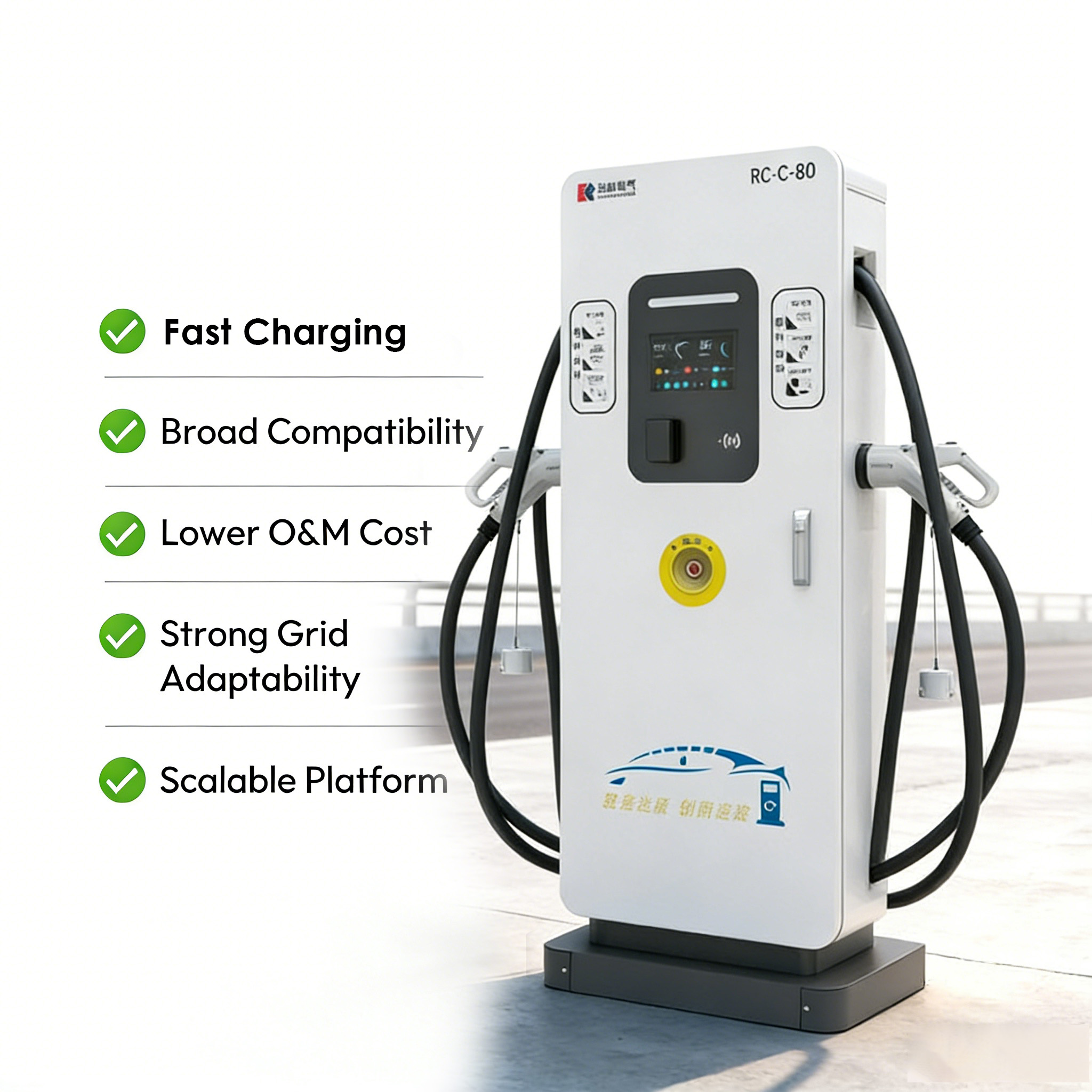

    Benefits

    • 60kW–80kW power is ideal for most grids without major upgrades.
    • Dual-port design allows charging two vehicles at the same time.
    • Flexible installation fits urban, suburban, or small commercial locations.
    • Easy operation with touchscreen and RFID card support.
    • Durable structure with low maintenance requirements.
    • Compatible with a wide range of EV models and varying voltage conditions.
    • Scalable for future expansion as EV adoption grows.

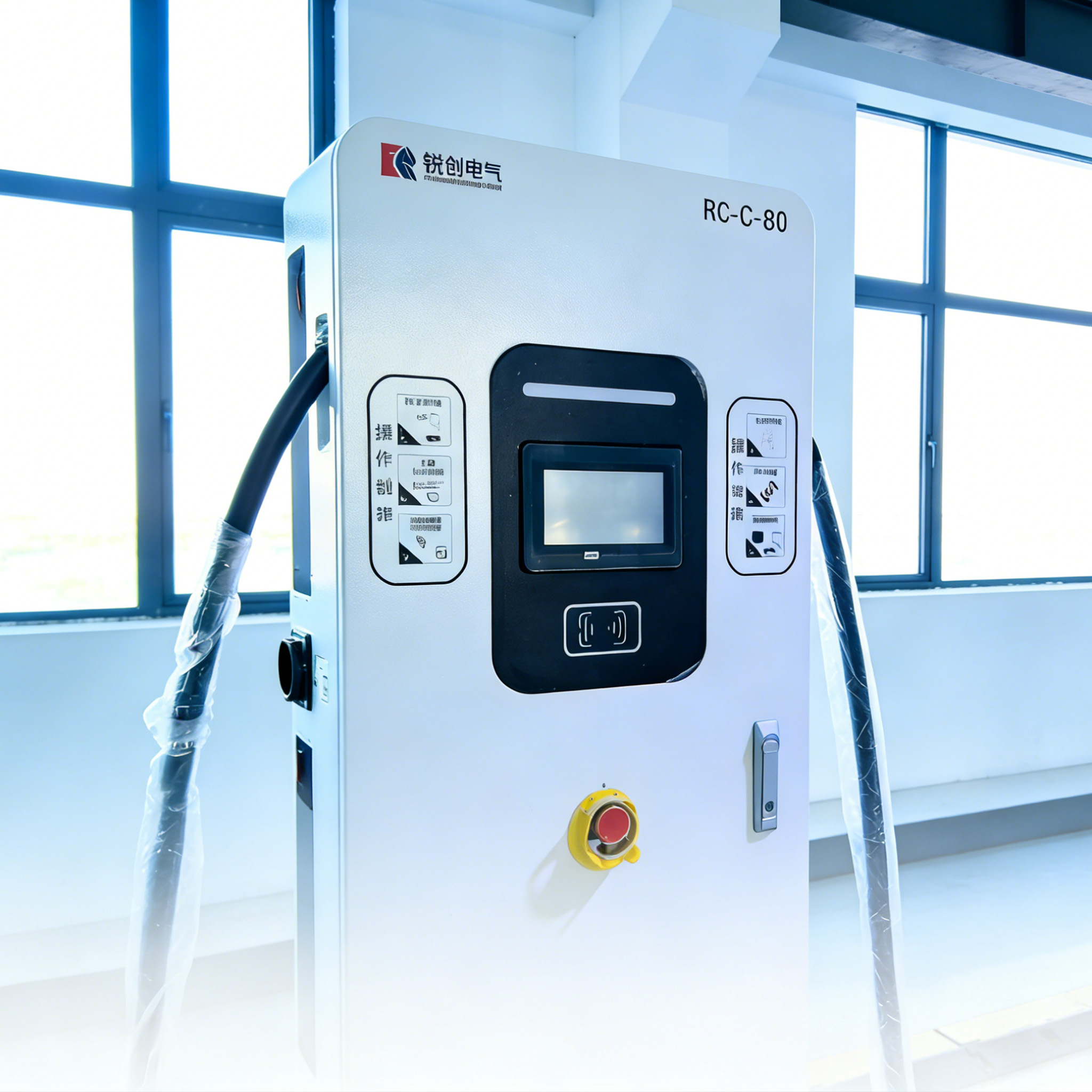

    Cabinet Design

    Sheet metal: 1.5mm galvanized steel plate.
    Honeycomb design of air inlet and outlet, Multiple waterproof: dense mesh, large heat dissipation area.
    Protection: IP54, can be installed outdoors.

    Charging Station Interface

    Easy-to-read displays: Variety of methods to connector the user like Mobile Apps, RFID card.
    Comprehensive info: Provide useful information to the user, such as the charging status, time remaining, and cost of the charging session.

    Fully Customizable

    Customized Service: Logo, colors, language… to meet the unique needs of different businesses and users.
    Modular Custom: can be tailored to fit specific requirements, whether it’s for a particular vehicle type, location, or energy output

    Specification

    • Fast EV Charger 60kW/80KW



    Fast EV Charger 60kW/80kW

    Mechanical

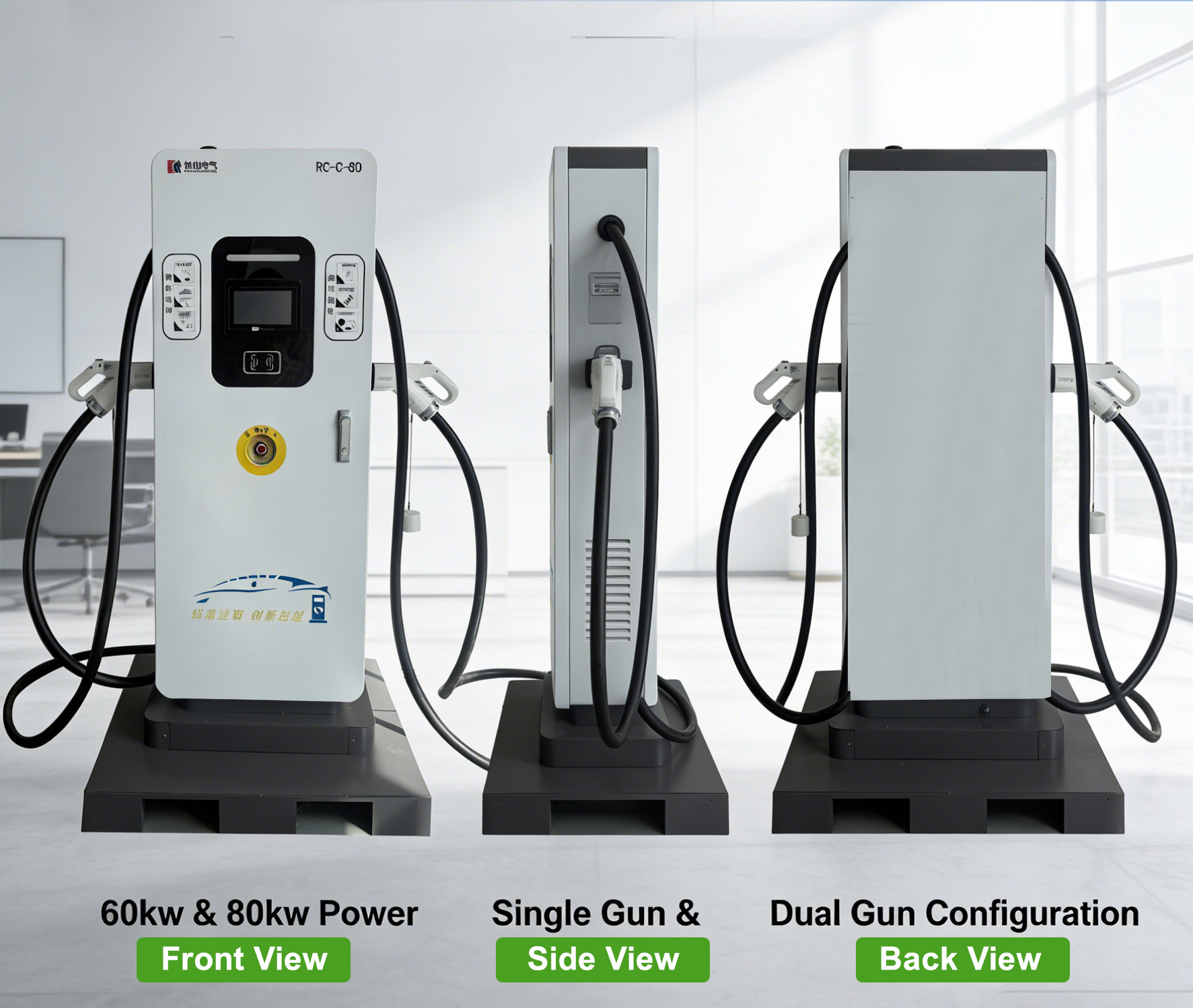

    • Dimension(W*D*H) 630x350x1500mm
    • Weight 180kg
    • Cable Length Standard 5m or Customized

    AC Input

    • Input Vlotage 380V±15 % /400V±15%/440V±15 %
    • Input Voltage Type TN – S(Three Phase Five Wire)
    • Input Current Rating Max 200A
    • Working Frequency  45~65Hz
    • Power Factor ≥0.99
    • Efficiency≥96 %

    DC Output

    • Output Voltage 200V – 750V / 200V – 1000V

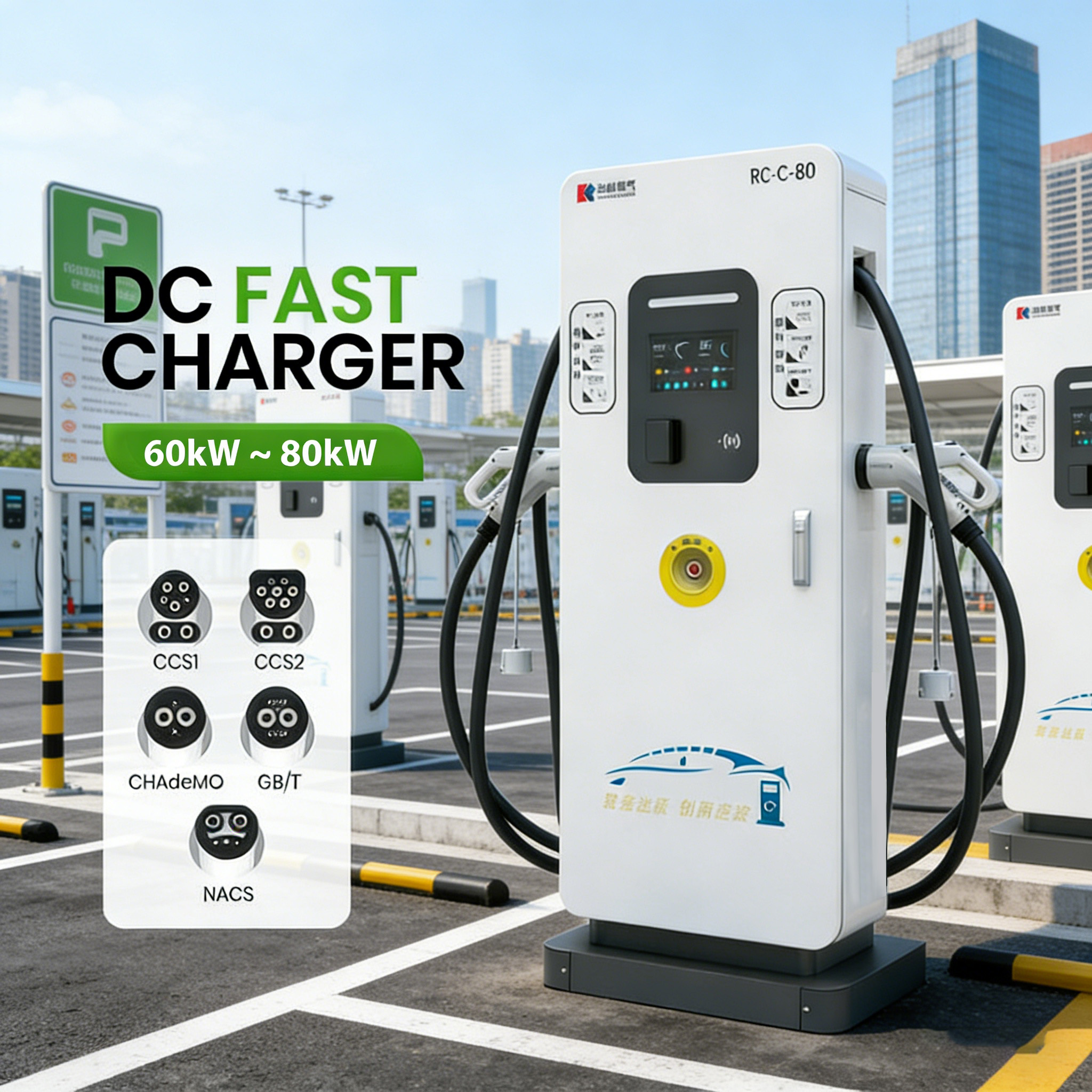

    • Charging Connector Dual GBT / CCS, or CCS / GBT + CHAdeMO
    • Simultaneous Output Mode Dynamic Distributor
    • Output Current DC – CCS 200A; GBT 250A; CHAdeMO 125A;

    Interface

    • Display 7” LCD Touch Screen
    • User Authentication QR Code, RFID, Mobile APP, POS / Credit Card(Optional)
    • Network Connection Internet Access Via 4G / Ethernet
    • Communication Protocols OCPP1.6

    Protection

    • Electric Protection Over-Current, Over-Voltage, Under-Voltage, Ground-Fault, Over-Temperature, Short-Circuit & Surge Protection…etc.
    • Working Temperature -30℃ ~ +50℃
    • Protection Level IP54
    • Warranty 2Years
