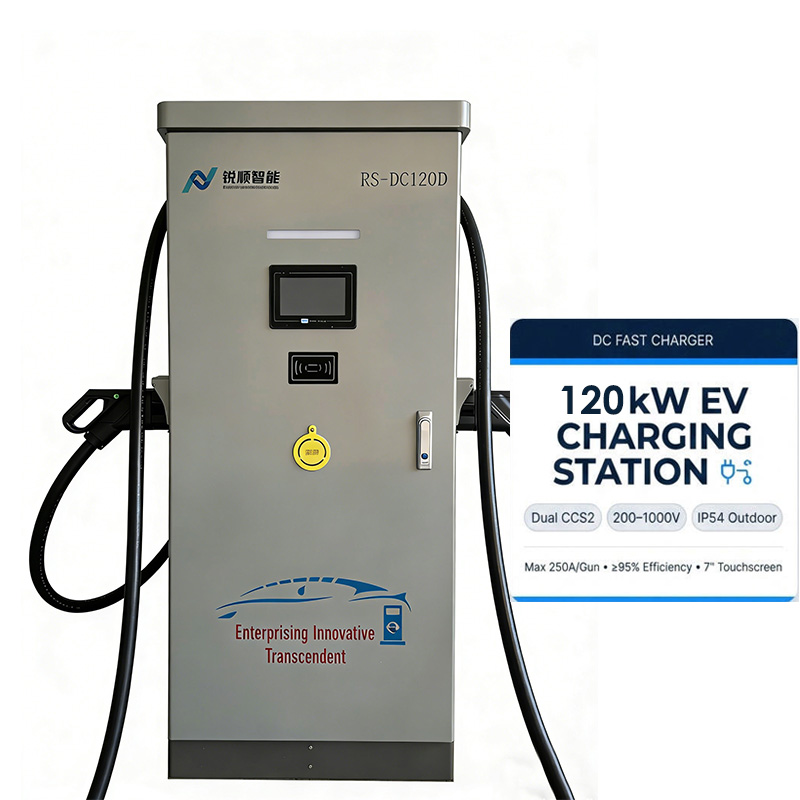

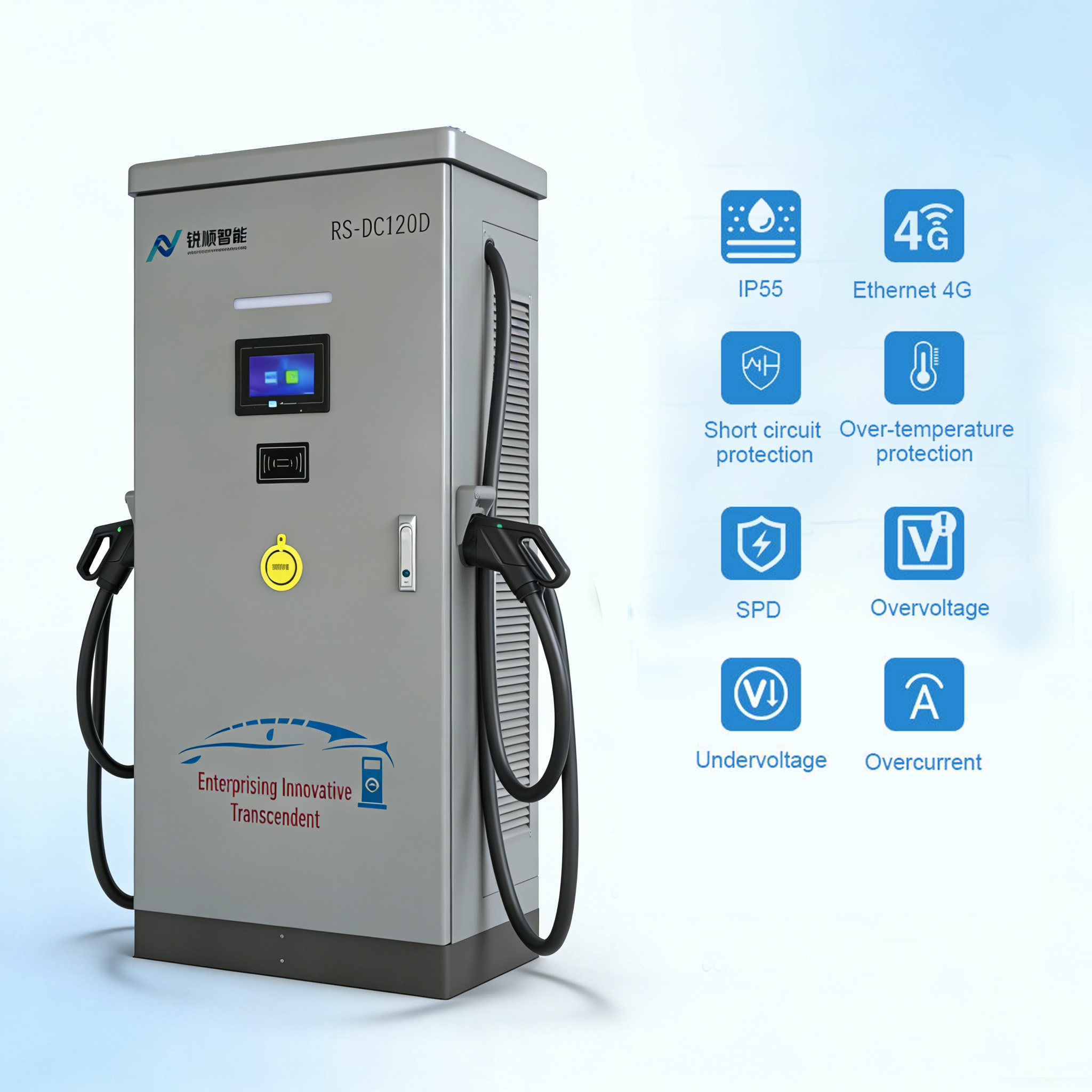

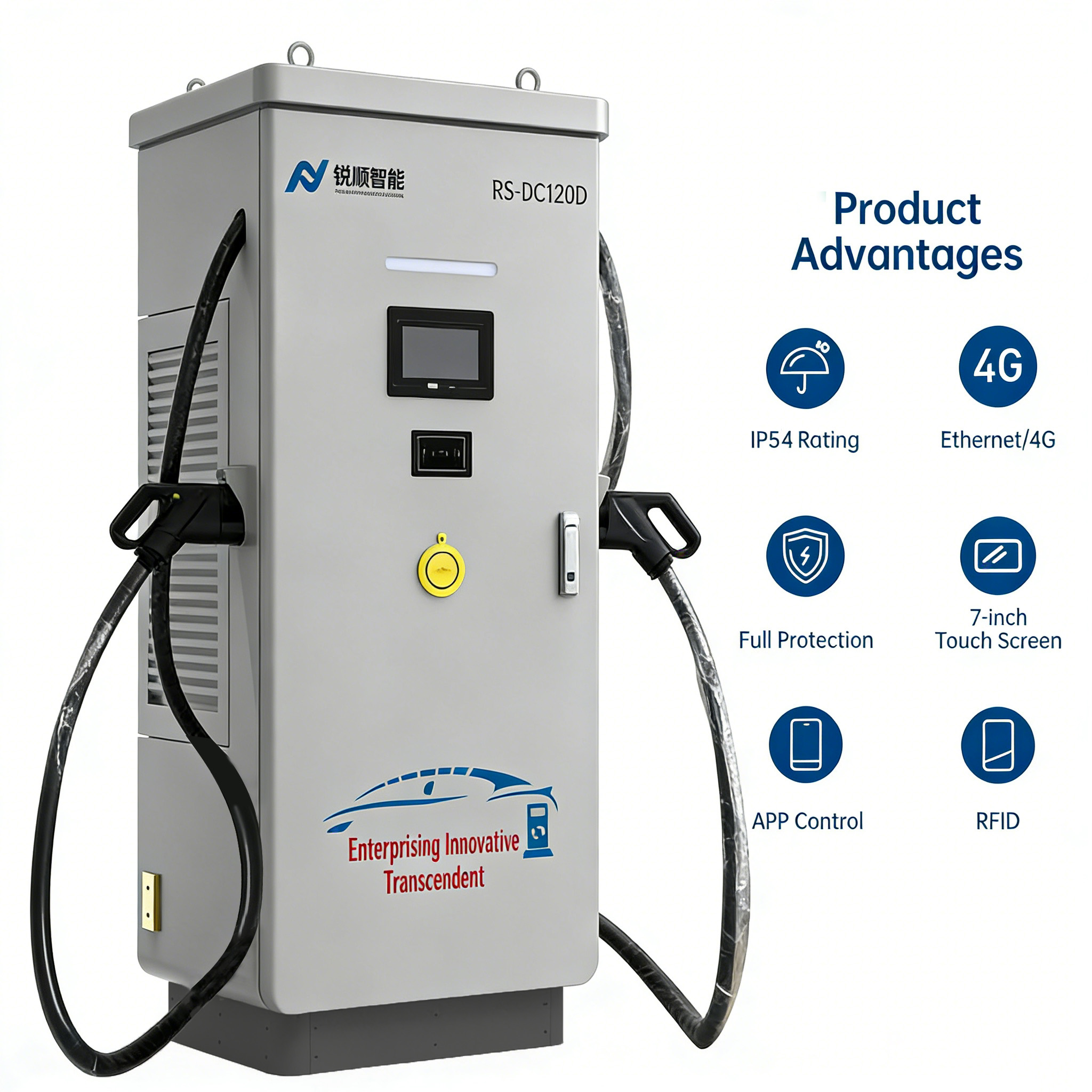

120kW Charging Station

Parking lots | Commercial Building | Workplaces | Fleet |Gas Station

Power: 60kW-360kW optional
Output Voltage: 50-1000V DC
Charge up to 2 vehicles simultaneously
Compatible with all electric vehicle
Charging connectors support CCS1, CCS2, CHAdeMO, GBT Optional

Chat Now 

Description

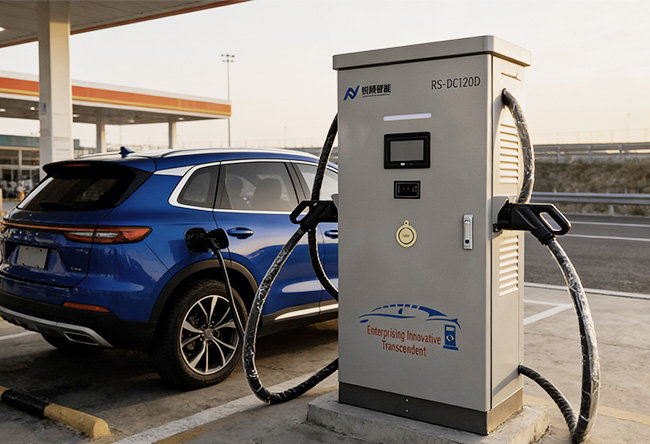

Perfect for highway charging, eBusdepots, eTruck terminals, EV dealerships, and other commercial settings with seamless EV charging, our 120 kW Dual Gun DC Charging station sets a new standard in fast and seamless EV charging. Level 3 fast charger guarantees safety, intelligence, and connectivity for your EV charging needs.



Shopping Center

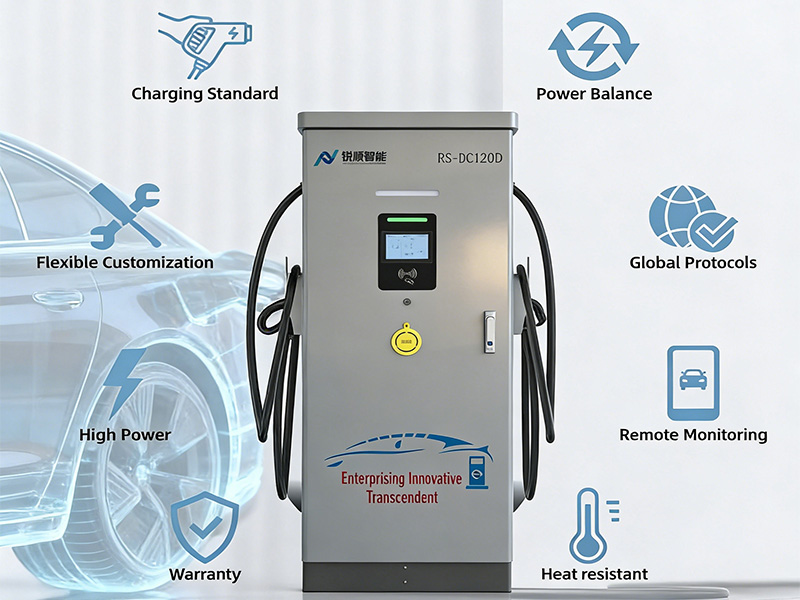

Technical Advantages

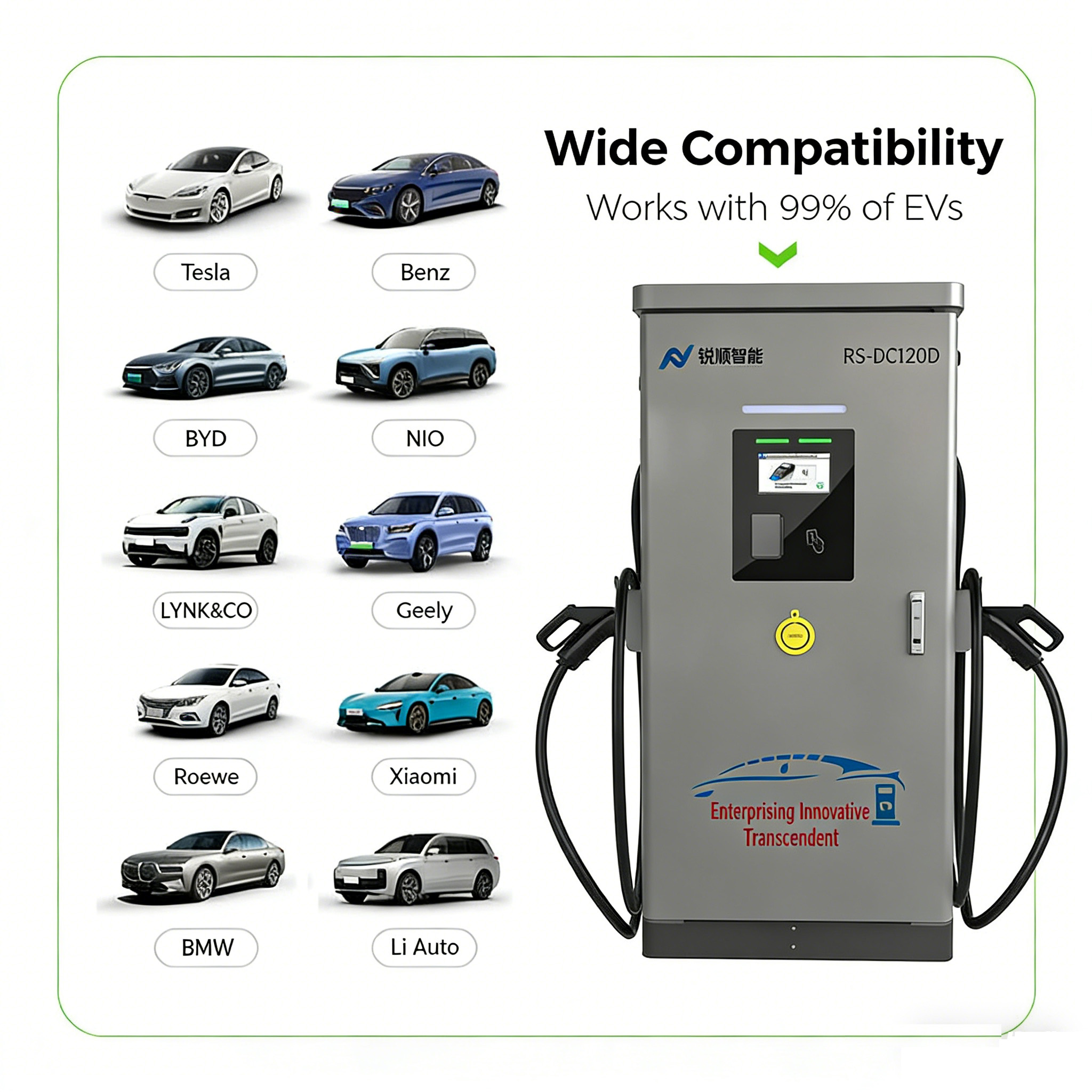

High Compatibility
Suitable for All Electric Vehicles

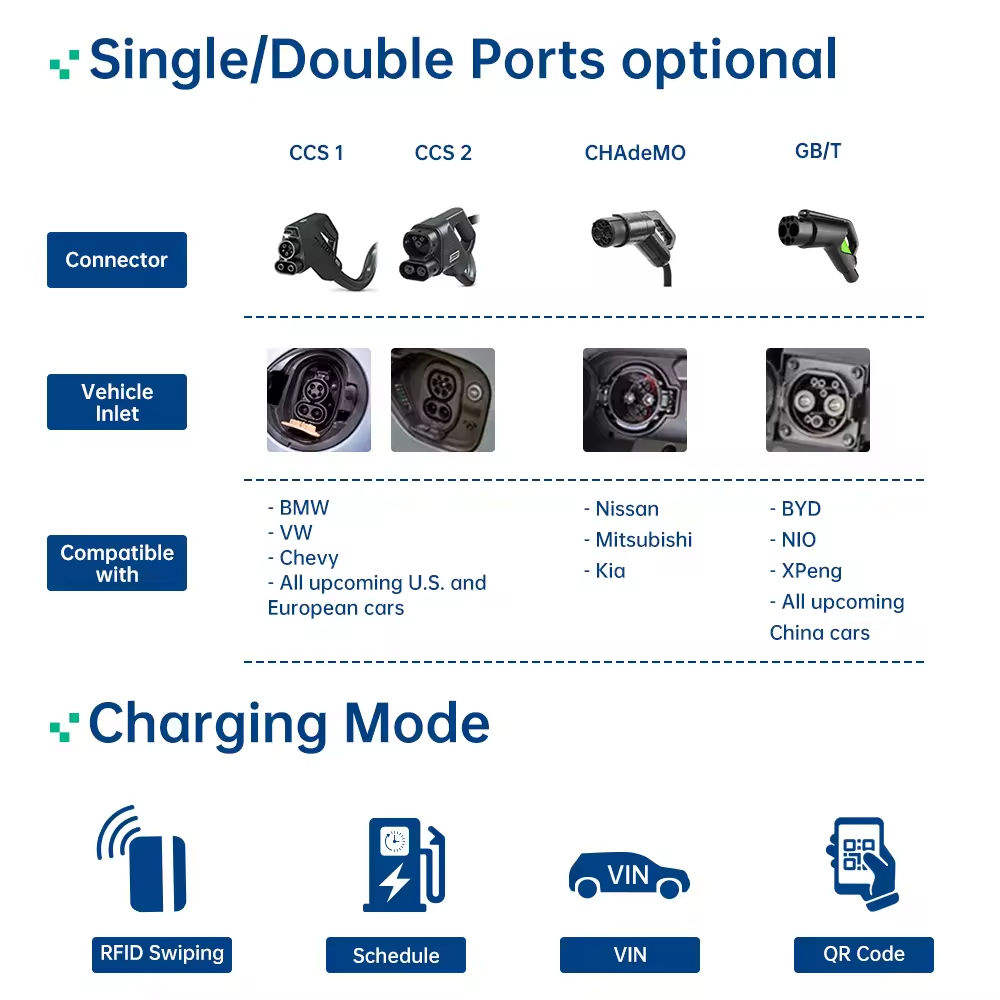

Charging connectors support CCS1, CCS2, CHAdeMO, GBT Optional
Charging communication protocol is compatible with the new and old GB/T27930
The charger adopts a wide constant power range charging module, which can achieve full power charging from a car with a battery voltage of 300V to a bus with a battery voltage of 1000V

EV charging payments

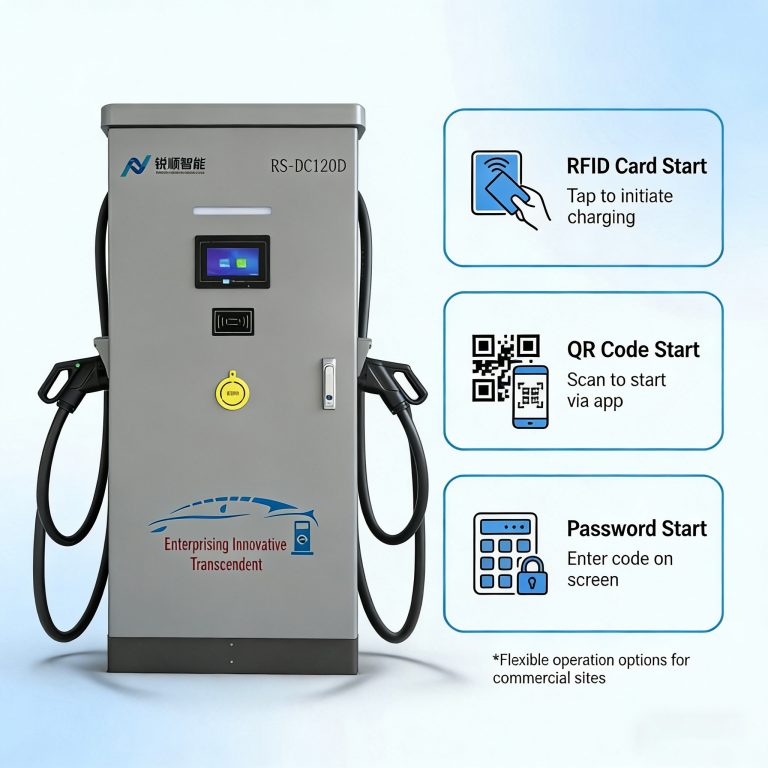

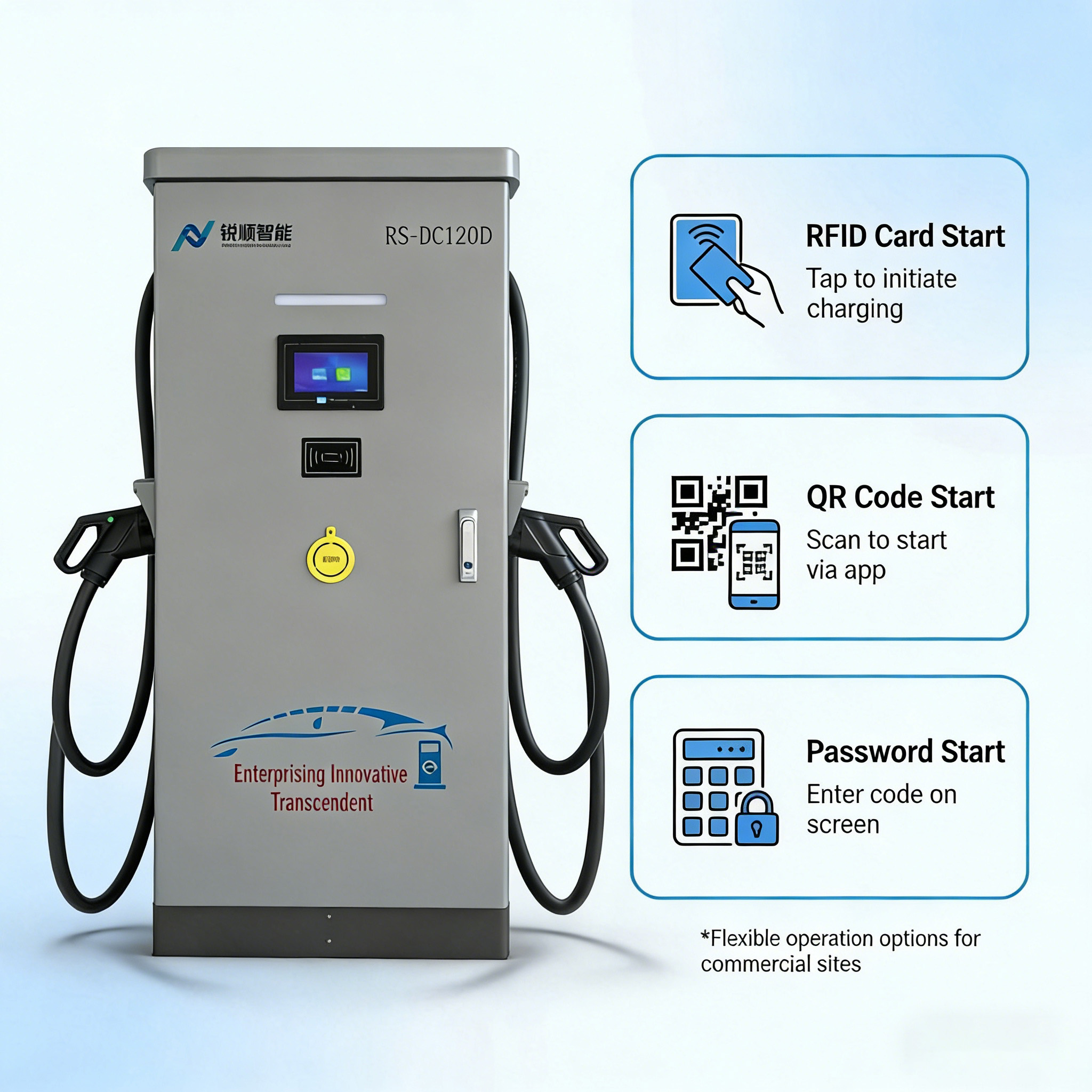

Multiple payment methods
for chosen

EV fast chargingconnectors: support CCS/CHAdeMO/GBT
RFID Cards: Swipe the RFID card against the card reader to start the charging
Credit/Debit Cards through POS: The most straightforward to pay with a credit card.
Scan the QR code on the screen

Features

Display: 7" touchscreen
Input Voltage: 400V
Input Frequency Range: 50-65 Hz
User Authentication: RFID (online and offline both)
Connectivity: Internet access via Ethernet 4G

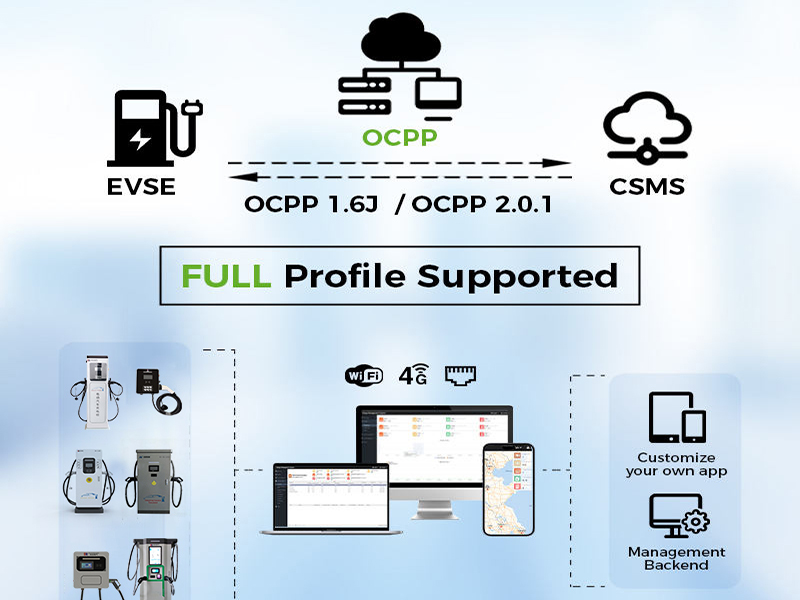

Communication Protocol: OCPP
Ingress Protection: IP 54
Cable Length: 5m
Charging Control: Scan - Pay - Charge
Operating Temperature: -10 °C to 50 °C

Cabinet Design

Sheet metal: 1.5mm galvanized steel plate.
Honeycomb design of air inlet and outlet, Multiple waterproof: dense mesh, large heat dissipation area.
Protection: IP54, can be installed outdoors.

Charging Station Interface

Easy-to-read displays: Variety of methods to connector the user like Mobile Apps, RFID card.
Comprehensive info: Provide useful information to the user, such as the charging status, time remaining, and cost of the charging session.

Fully Customizable

Customized Service: Logo, colors, language… to meet the unique needs of different businesses and users.
Modular Custom: can be tailored to fit specific requirements, whether it’s for a particular vehicle type, location, or energy output

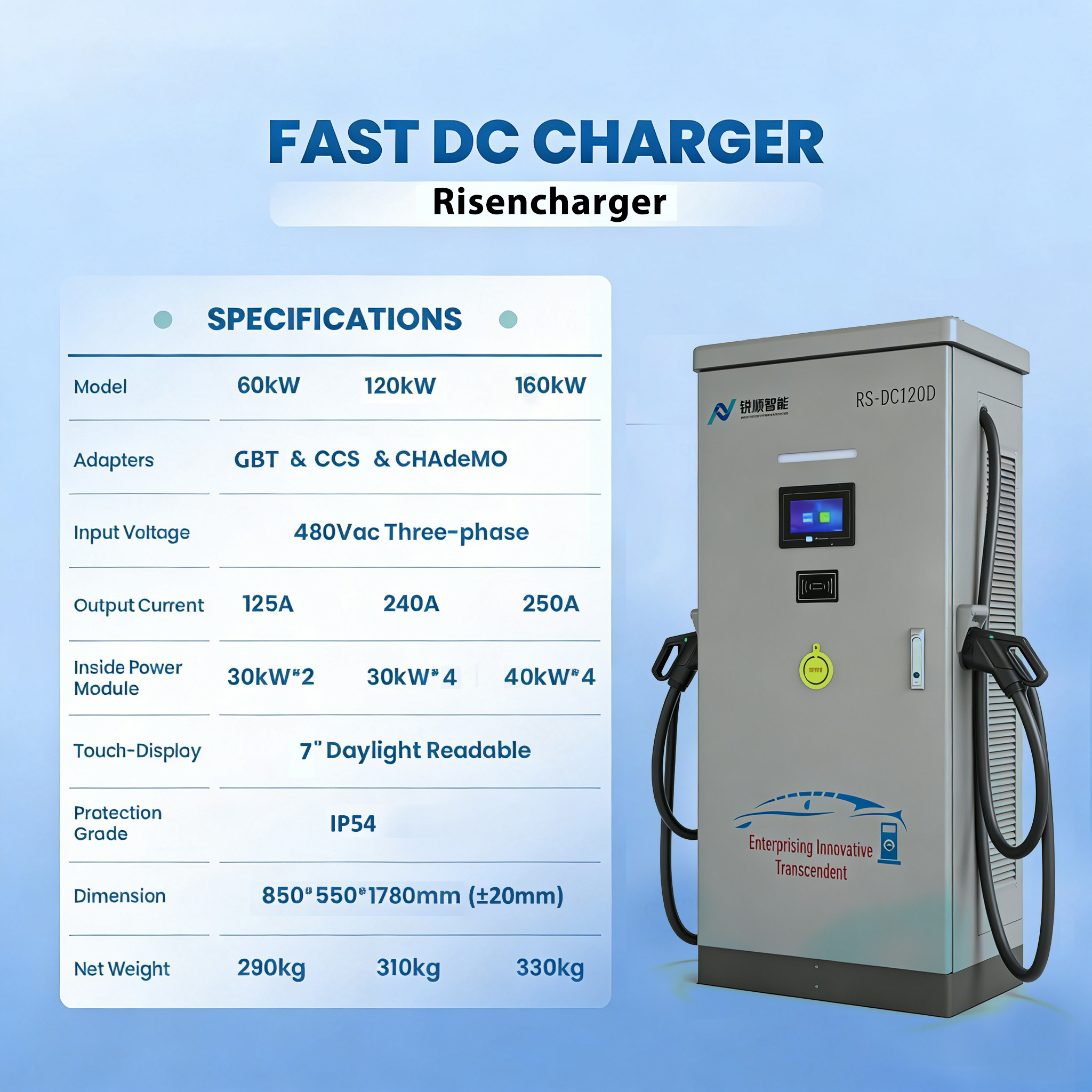

Specification

DC Fast EV Charger 60kW-240KW

DC Fast EV Charger 60kW/80kW/120kW/160kW/180kW/240KW

Mechanical

Dimension(W*D*H) 800x700x1800mm
Weight 300–380kg
Cable Length Standard 5m or Customized

AC Input

Input Vlotage 380V±15 % /400V±15%/440V±15 %
Input Voltage Type TN – S(Three Phase Five Wire)
Input Current Rating Max 250A
Working Frequency 45~65Hz
Power Factor ≥0.99
Efficiency≥96 %

DC Output

Output Voltage 200V – 750V / 50V – 1000V
Charging Connector Dual GBT / CCS, or CCS / GBT + CHAdeMO
Simultaneous Output Mode Dynamic Distributor
Output Current DC – CCS 200A; GBT 250A; CHAdeMO 125A;

Interface

Display 7” LCD Touch Screen
User Authentication QR Code, RFID, Mobile APP, POS / Credit Card(Optional)
Network Connection Internet Access Via 4G /Ethernet
Communication Protocols OCPP1.6

Protection

Electric Protection Over-Current, Over-Voltage, Under-Voltage, Ground-Fault, Over-Temperature, Short-Circuit & Surge Protection…etc.
Working Temperature -30℃ ~ +50℃
Protection Level IP54
Warranty 2Years
